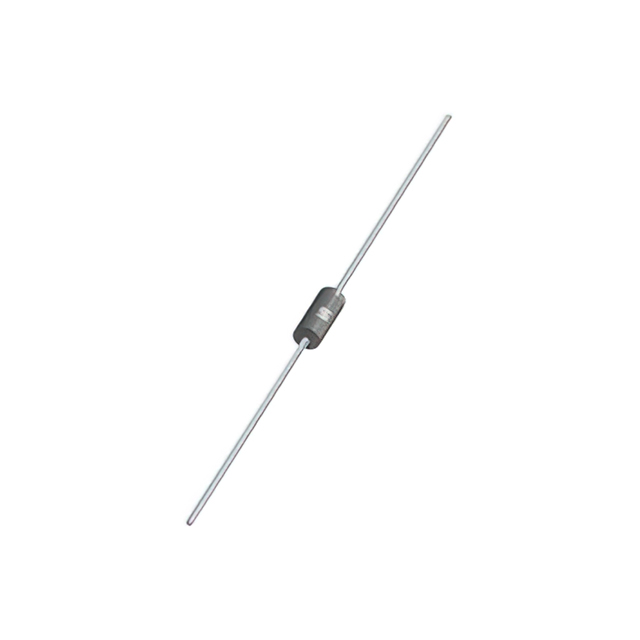

SA9.0CH

Active

Taiwan Semiconductor Corporation

500W, 11.1V, 10%, BIDIRECTIONAL,

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

500W, 11.1V, 10%, BIDIRECTIONAL,

Technical Specifications

Parameters and characteristics for this part

Specification	SA9.0CH

Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	31 A
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	DO-204AC, DO-15, Axial
Power - Peak Pulse	500 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-204AC
Supplier Device Package	DO-15
Type	Zener
Voltage - Breakdown (Min) [Min]	10 V
Voltage - Clamping (Max) @ Ipp [Max]	16.9 V
Voltage - Reverse Standoff (Typ)	9 V

Part	Mounting Type	Supplier Device Package	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Type	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Applications	Power - Peak Pulse	Voltage - Clamping (Max) @ Ipp [Max]	Package / Case	Voltage - Breakdown (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Unidirectional Channels [custom]	Grade	Qualification
Taiwan Semiconductor Corporation SA9.0CA B0G	Through Hole	DO-204AC	DO-15	9 V	Zener	34 A	1	General Purpose	500 W	15.4 V	Axial DO-15 DO-204AC	10 V	-55 °C	175 ░C
Taiwan Semiconductor Corporation SA9.0CA	Through Hole	DO-204AC	DO-15	9 V	Zener	34 A	1	General Purpose	500 W	15.4 V	Axial DO-15 DO-204AC	10 V	-55 °C	175 ░C
Taiwan Semiconductor Corporation SA9.0AH	Through Hole	DO-204AC	DO-15	9 V	Zener	34 A			500 W	15.4 V	Axial DO-15 DO-204AC	10 V	-55 °C	175 ░C	1	Automotive	AEC-Q101
Taiwan Semiconductor Corporation SA9.0CH	Through Hole	DO-204AC	DO-15	9 V	Zener	31 A	1		500 W	16.9 V	Axial DO-15 DO-204AC	10 V	-55 °C	175 ░C		Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16.9V Clamp 31A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
