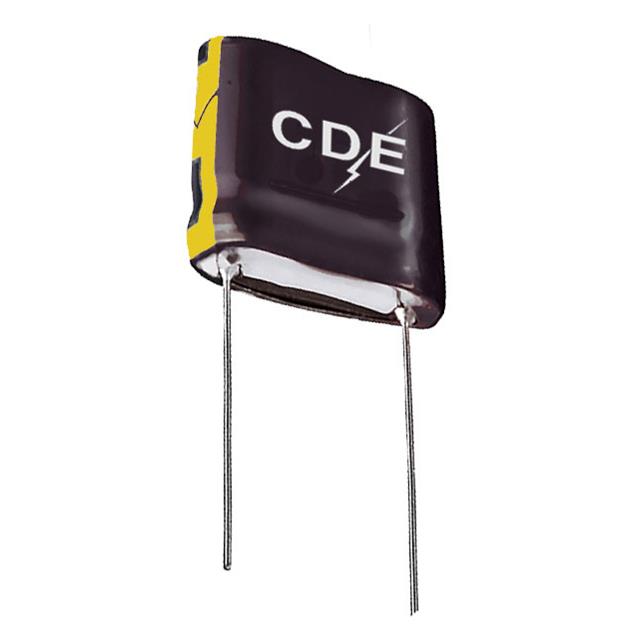

DSF155Q6R0HAE
ActiveCornell Dubilier Knowles
CAPACITOR 1.5F -10%, +30% 6V TH
DSF155Q6R0HAE
ActiveCornell Dubilier Knowles
CAPACITOR 1.5F -10%, +30% 6V TH
Description
General part information
DSF155Q6R0HAE
1.5 F (EDLC) Supercapacitor 6 V Radial, Can 180mOhm @ 1kHz 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | DSF155Q6R0HAE |
|---|---|
| Capacitance | 1.5 F |
| ESR (Equivalent Series Resistance) | 180 mOhm |
| Height - Seated (Max) | 0.945 in |
| Lead Spacing | 0.472 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 0.669 in |
| Size / Dimension Width | 0.335 in |
| Termination | PC Pins |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 6 VDC |
