2-103669-9
ActiveTE Connectivity AMP Connectors

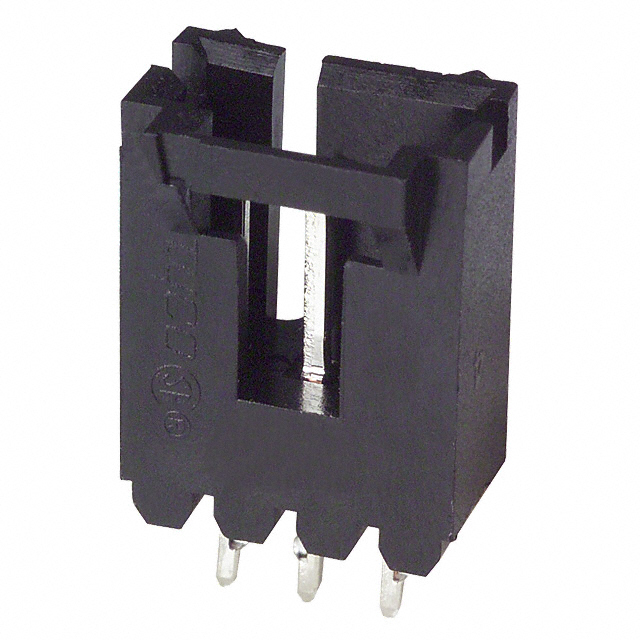

CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-103669-9
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2-103669-9 | 103669 Series |
|---|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post | 0.13 in | 0.13 in |
| Contact Length - Post | 3.3 mm | 3.3 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 13.6 mm | 13.6 mm |
| Insulation Height | 0.535 in | 0.535 in |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | - | 2 - 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.545 in | 0.545 in |
| Overall Contact Length | 13.84 mm | 13.84 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder, Press-Fit | Solder, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
103669 Series
CONN HEADER VERT 3POS 2.54MM
| Part | Fastening Type | Style | Number of Positions Loaded | Applications | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Type | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Current Rating (Amps) | Contact Finish - Post | Contact Length - Mating [x] | Contact Length - Mating | Contact Shape | Insulation Color | Overall Contact Length | Overall Contact Length | Shrouding | Mounting Type | Contact Material | Features | Connector Type | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-103669-9 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | ||
TE Connectivity AMP Connectors 103669-7 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin-Lead | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | Tin-Lead | 8 |
TE Connectivity AMP Connectors 6-103669-3 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | 14 | |
TE Connectivity AMP Connectors 5-103669-9 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | 10 | |
TE Connectivity AMP Connectors 5-103669-5 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | 6 | |
TE Connectivity AMP Connectors 5-103669-3 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | 4 | |
TE Connectivity AMP Connectors 103669-6 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin-Lead | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | Tin-Lead | 7 |
TE Connectivity AMP Connectors 6-103669-6 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | ||
TE Connectivity AMP Connectors 5-103669-7 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | 8 | |
TE Connectivity AMP Connectors 6-103669-0 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | 11 | |
TE Connectivity AMP Connectors 1-103669-0 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin-Lead | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | Tin-Lead | 11 |
TE Connectivity AMP Connectors 103669-9 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin-Lead | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | Tin-Lead | 10 |
TE Connectivity AMP Connectors 2-103669-7 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | ||
TE Connectivity AMP Connectors 5-103669-4 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | ||
TE Connectivity AMP Connectors 103669-1 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin-Lead | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | Tin-Lead | 2 |
TE Connectivity AMP Connectors 6-103669-2 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | 13 | |
TE Connectivity AMP Connectors 103669-8 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin-Lead | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | Tin-Lead | 9 |
TE Connectivity AMP Connectors 103669-3 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin-Lead | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | Tin-Lead | 4 |
TE Connectivity AMP Connectors 1-103669-3 | Latch Holder | Board to Board, Cable | All | Automotive, General Purpose, Medical, Telecommunications | 0.1 in | 2.54 mm | 1 | Male Pin | 0.13 in | 3.3 mm | UL94 V-0 | -65 ░C | 105 ░C | Thermoplastic | 2.54 µm | 100 µin | Press-Fit, Solder | 3 A | Tin-Lead | 0.23 in | 5.84 mm | Square | Black | 0.545 in | 13.84 mm | Shrouded - 4 Wall | Through Hole | Brass | Keying Slot | Header | 13.6 mm | 0.535 in | 2.54 çm | 100 çin | Tin-Lead | 14 |
Description
General part information
103669 Series
Connector Header Through Hole 3 position 0.100" (2.54mm)
