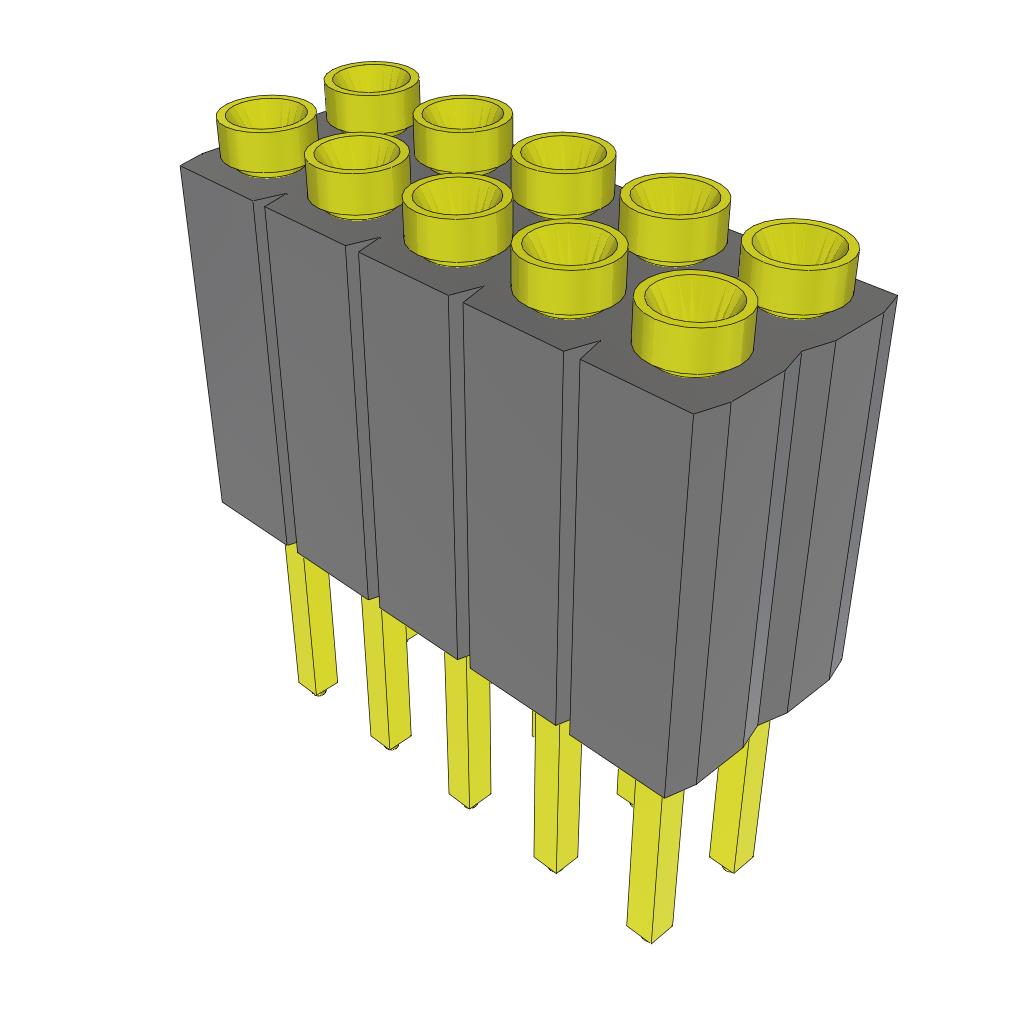

ESD-105-G-06

Active

Samtec Inc.

2.54MM 2.54MM DOUBLE ROW GOLD -55℃~+125℃ 10P STRAIGHT 7.62MM PLUGIN,P=2.54MM FEMALE HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" Elevated Double Row Screw Machine Socket Strip ESD Datasheet +1

ESD-105-G-06

Active

Samtec Inc.

2.54MM 2.54MM DOUBLE ROW GOLD -55℃~+125℃ 10P STRAIGHT 7.62MM PLUGIN,P=2.54MM FEMALE HEADERS ROHS

Deep-Dive with AI

Documents.100" Elevated Double Row Screw Machine Socket Strip ESD Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESD-105-G-06

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.215 in
Contact Length - Post	5.46 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.3 in
Insulation Height [z]	7.62 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

ESD-105 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Material	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Contact Shape	Contact Finish - Post	Fastening Type	Insulation Color	Number of Positions	Insulation Height	Insulation Height	Termination	Contact Type	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. ESD-105-T-05	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	0.165 in	4.19 mm	2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Tin	Push-Pull	Black	10	0.5 in	12.7 mm	Solder	Female Socket
Samtec Inc. ESD-105-T-23	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper			2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Tin	Push-Pull	Black	10			Solder	Female Socket	2.92 mm	0.115 in	0.3 in	7.62 mm
Samtec Inc. ESD-105-T-07	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper			2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Tin	Push-Pull	Black	10	0.4 in	10.16 mm	Solder	Female Socket	6.73 mm	0.265 in
Samtec Inc. ESD-105-T-04	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper			2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Tin	Push-Pull	Black	10	0.4 in	10.16 mm	Solder	Female Socket	6.43 mm	0.253 in
Samtec Inc. ESD-105-TT-03	2.54 mm	0.1 in	0.1 in	2.54 mm		Liquid Crystal Polymer (LCP)	Beryllium Copper			2			Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Tin	Push-Pull	Black	10			Solder	Female Socket	3.89 mm	0.153 in	0.3 in	7.62 mm
Samtec Inc. ESD-105-G-25	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	0.165 in	4.19 mm	2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Gold	Push-Pull	Black	10	0.5 in	12.7 mm	Solder	Female Socket					10 çin	0.25 çm
Samtec Inc. ESD-105-G-06	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper			2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Gold	Push-Pull	Black	10			Solder	Female Socket	5.46 mm	0.215 in	0.3 in	7.62 mm	10 çin	0.25 çm
Samtec Inc. ESD-105-T-24	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper			2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Tin	Push-Pull	Black	10	0.4 in	10.16 mm	Solder	Female Socket	2.92 mm	0.115 in
Samtec Inc. ESD-105-G-24	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper			2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Gold	Push-Pull	Black	10	0.4 in	10.16 mm	Solder	Female Socket	2.92 mm	0.115 in			10 çin	0.25 çm
Samtec Inc. ESD-105-G-05	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Liquid Crystal Polymer (LCP)	Beryllium Copper	0.165 in	4.19 mm	2	10 çin	0.25 çm	Through Hole	All	-55 °C	125 °C	UL94 V-0	Elevated Socket	Circular	Gold	Push-Pull	Black	10	0.5 in	12.7 mm	Solder	Female Socket					10 çin	0.25 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.41
LCSC	Piece	1	$ 19.97
		203	$ 7.97
		497	$ 7.70
		1001	$ 7.57

Description

General part information

ESD-105 Series

10 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

.100" Elevated Double Row Screw Machine Socket Strip

ESD Datasheet

Datasheet
