Description
General part information

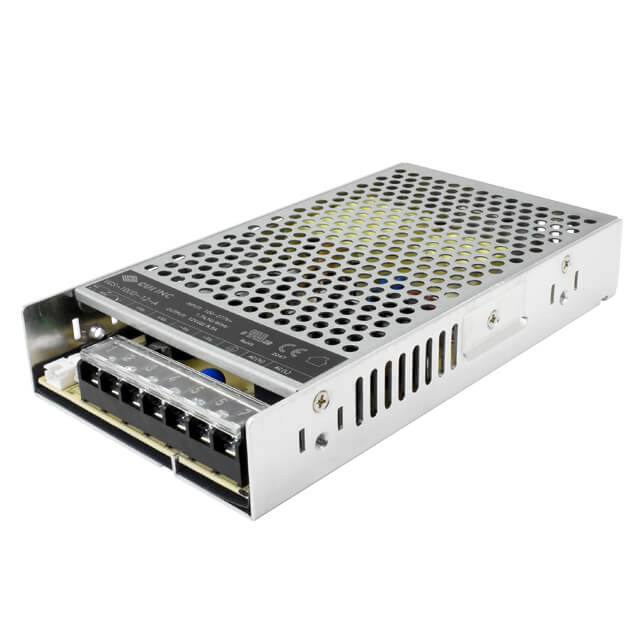

VGS-100D-15-A
Enclosed AC DC Converters 1 Output 15V 85 ~ 305 VAC, 120 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VGS-100D-15-A |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | cURus, IEC, CE, EN, UL |
| Current - Output 1 | 6.7 A |
| Efficiency | 86 % |
| Features | Adjustable Output, DC Input Capable, Remote On/Off, PFC |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 101 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 7.05 in |
| Size / Dimension Width | 3.9 in |
| Standard Number | 60335, 61000-4-4, 61000-4-11, Class I, 61000-4-2, 61000-4-5, 61558, 62368, 61000-3-2, 55032 Class B, 61000-4-6, 61000-3-3, 61000-4-3 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 15 V |
