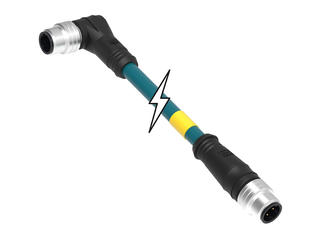

Specification	1300480145

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Right Angle, Receptacle
2nd Connector Gender	Male Pins
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	D
2nd Connector Shell Size - Insert (Code)	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Teal
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Length	3.28 ft
Shielding	Shielded
Usage	Industrial Environments, Cat5e

130048 Series

Ethernet Cables / Networking Cables MICRO-CHANGE M12 MA-FM

...

Part	2nd Connector Number of Positions Loaded	1st Connector Type	2nd Connector Mounting Type	2nd Connector Number of Positions	1st Connector Number of Positions Loaded	1st Connector Gender	1st Connector Mounting Type	1st Connector Number of Positions	Cable Material	Color	2nd Connector Type	Length	Assembly Configuration	Usage	Shielding	2nd Connector Gender	Ingress Protection Description	Ingress Protection IP Rating	Cable Type	2nd Connector Shell Size - Insert (Code)	1st Connector Shell Size - Insert	2nd Connector Orientation	1st Connector Orientation
Molex 1200490457	All	Receptacle	Free Hanging (In-Line)	4	All	Male Pins	Free Hanging (In-Line)	4 positions	Polyvinyl Chloride (PVC)	Blue-Green	Receptacle	262.5 ft	Standard	Industrial Environments	Unshielded	Male Pins	Dust Tight Waterproof	IP67	Round	M12	M12
Molex 1200490557	All	Receptacle	Free Hanging (In-Line)	4	All	Male Pins	Free Hanging (In-Line)	4 positions	Polyvinyl Chloride (PVC)	Blue-Green	Receptacle	0.98 ft	Standard	Cat5e Industrial Environments	Unshielded	Male Pins	Dust Tight Waterproof	IP67	Round	M12	M12	D	D
Molex 1200490490	All	Receptacle	Free Hanging (In-Line)	4	All	Male Pins	Free Hanging (In-Line)	4 positions	Polyvinyl Chloride (PVC)	Teal	Receptacle	6.56 ft	Standard	Industrial Environments	Unshielded	Male Pins	Dust Tight Waterproof	IP67	Round	M12	M12
Molex 1200490430
Molex 1200490417	All	Receptacle	Free Hanging (In-Line)	4	All	Male Pins	Free Hanging (In-Line)	4 positions	Polyvinyl Chloride (PVC)	Blue-Green	Receptacle	3.28 ft	Standard	Cat5e Industrial Environments	Unshielded	Male Pins	Dust Tight Waterproof	IP67	Round	M12	M12	D	D
