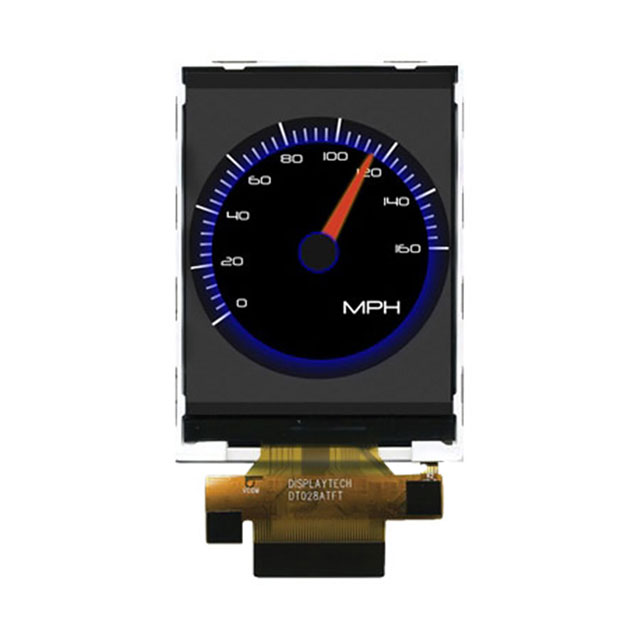

DT028ATFT
ActiveDisplaytech
LCD DISP TFT 2.8" 240X320
Deep-Dive with AI
Search across all available documentation for this part.
DT028ATFT
ActiveDisplaytech
LCD DISP TFT 2.8" 240X320
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DT028ATFT | DT028 Series |
|---|---|---|
| Backlight | LED | LED |
| Diagonal Screen Size | 2.8 in | 2.8 in |
| Diagonal Screen Size | 71.12 mm | 71.12 mm |
| Display Mode | Transmissive | Transmissive |
| Display Type | TFT - Color | TFT - Color |
| Dot Pixels | - | QVGA |
| Dot Pixels [x] | 240 pixels | 240 - 320 pixels |
| Dot Pixels [y] | 320 | 240 - 320 pixels |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Interface | Parallel | Parallel, 16-Bit (RGB), Parallel |
| Touchscreen | - | Resistive |
| Viewing Area [custom] | 43.2 mm | 43.2 mm |
| Viewing Area [custom] | 57.6 mm | 57.6 mm |
DT028 Series
DISPLAY MODULE
| Part | Viewing Area [custom] | Viewing Area [custom] | Dot Pixels | Dot Pixels [x] | Dot Pixels [y] | Display Mode | Diagonal Screen Size | Diagonal Screen Size | Display Type | Interface | Backlight | Graphics Color | Touchscreen |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Displaytech DT028BTFT | 43.2 mm | 57.6 mm | QVGA | 320 pixels | 240 pixels | Transmissive | 2.8 in | 71.12 mm | TFT - Color | Parallel, 16-Bit (RGB) | LED | Blue, Green, Red | |
Displaytech DT028ATFT-TS | 43.2 mm | 57.6 mm | 240 pixels | 320 | Transmissive | 2.8 in | 71.12 mm | TFT - Color | Parallel | LED | Blue, Green, Red | Resistive | |
Displaytech DT028ATFT | 43.2 mm | 57.6 mm | 240 pixels | 320 | Transmissive | 2.8 in | 71.12 mm | TFT - Color | Parallel | LED | Blue, Green, Red | ||
Displaytech DT028BTFT-TS | 43.2 mm | 57.6 mm | QVGA | 320 pixels | 240 pixels | Transmissive | 2.8 in | 71.12 mm | TFT - Color | Parallel, 16-Bit (RGB) | LED | Blue, Green, Red | Resistive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.54 | |
| 10 | $ 27.83 | |||
| 225 | $ 24.31 | |||
Description
General part information
DT028 Series
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel 2.8" (71.12mm) 240 x 320
