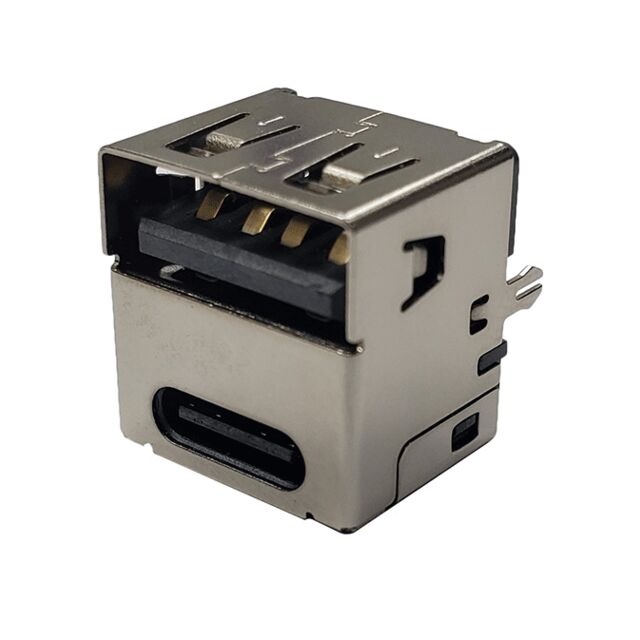

USB-C31-A-D-VT-CS1
ActiveAdam Tech
CONN USB TYPE-A AND TYPE-C VERTI
Deep-Dive with AI
Search across all available documentation for this part.
USB-C31-A-D-VT-CS1
ActiveAdam Tech
CONN USB TYPE-A AND TYPE-C VERTI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | USB-C31-A-D-VT-CS1 | USB-C31 Series |
|---|---|---|
| Connector Type | USB-A (USB TYPE-A), Stacked, USB-C (USB TYPE-C) | USB-C (USB TYPE-C), USB-A (USB TYPE-A), Stacked |
| Contact Finish | Gold | Gold |
| Current Rating (Amps) | 5A, 8A | 5A, 8A |
| Current Rating (Amps) | - | 0.25 - 6 A |
| Features | - | Board Guide |
| Gender | Receptacle | Receptacle |
| Insulation Color | Black | Black |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | - | 10000 |
| Mounting Feature | Vertical | Vertical, Horizontal, Flange, Horizontal |
| Mounting Type | Through Hole | Through Hole, Surface Mount, Right Angle, Board Cutout, Right Angle, Surface Mount |
| Number of Contacts | 28 | 24 - 28 |
| Number of Ports | 2 | 1 - 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -40 - -30 °C |
| Shell/Shielding Material | Stainless, Steel | Stainless, Steel |
| Shielding | Shielded | Shielded |
| Specifications | USB 2.0, USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed+ (USB 3.1)) | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)), USB 2.0, USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed+ (USB 3.1)) |
| Termination | Solder | Solder |
USB-C31 Series
CONN USB TYPE C VERTICAL
| Part | Shielding | Mating Cycles | Number of Contacts | Specifications | Material Flammability Rating | Connector Type | Shell/Shielding Material | Current Rating (Amps) | Gender | Mounting Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Insulation Color | Mounting Feature | Number of Ports | Features | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech USB-C31-S-VT-CS2A-BK-PP-T/R | Shielded | 10000 | 24 | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) | UL94 V-0 | USB-C (USB TYPE-C) | Stainless, Steel | 1.25 A, 5 A | Receptacle | Through Hole | Solder | 85 °C | -40 °C | Gold | Black | Vertical | 1 | ||
Adam Tech USB-C31-S-RA-CS2-SMT-BK-T/R | Shielded | 10000 | 24 | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) | UL94 V-0 | USB-C (USB TYPE-C) | Stainless, Steel | 0.25 A, 1.25 A, 5 A | Receptacle | Surface Mount, Right Angle, Through Hole | Solder | 85 °C | -40 °C | Gold | Black | Horizontal | 1 | Board Guide | |
Adam Tech USB-C31-A-D-VT-CS1 | Shielded | 28 | USB 2.0, USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed+ (USB 3.1)) | UL94 V-0 | Stacked, USB-A (USB TYPE-A), USB-C (USB TYPE-C) | Stainless, Steel | Receptacle | Through Hole | Solder | 85 °C | -30 ░C | Gold | Black | Vertical | 2 | 5A, 8A | |||
Adam Tech USB-C31-S-RA-CS1A-BK-SS-T/R | Shielded | 10000 | 24 | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) | UL94 V-0 | USB-C (USB TYPE-C) | Stainless, Steel | 0.25 A, 1.25 A, 5 A | Receptacle | Surface Mount, Right Angle, Through Hole | Solder | 85 °C | -40 °C | Gold | Black | Horizontal | 1 | Board Guide | |
Adam Tech USB-C31-S-RA-EH-WP-WF-BK-CS5 | Shielded | 24 | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) | UL94 V-0 | USB-C (USB TYPE-C) | Stainless, Steel | 6 A | Receptacle | Board Cutout, Right Angle, Surface Mount | Solder | Gold | Black | Flange, Horizontal | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.62 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.80 | |||
| 40 | $ 1.71 | |||
| 80 | $ 1.58 | |||
| 230 | $ 1.41 | |||
| 440 | $ 1.32 | |||
| 945 | $ 1.22 | |||
| 2400 | $ 1.11 | |||
Description
General part information
USB-C31 Series
USB-A (USB TYPE-A) and USB-C (USB TYPE-C), Stacked USB 2.0, USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed+ (USB 3.1)) Receptacle Connector 28 Position Through Hole
