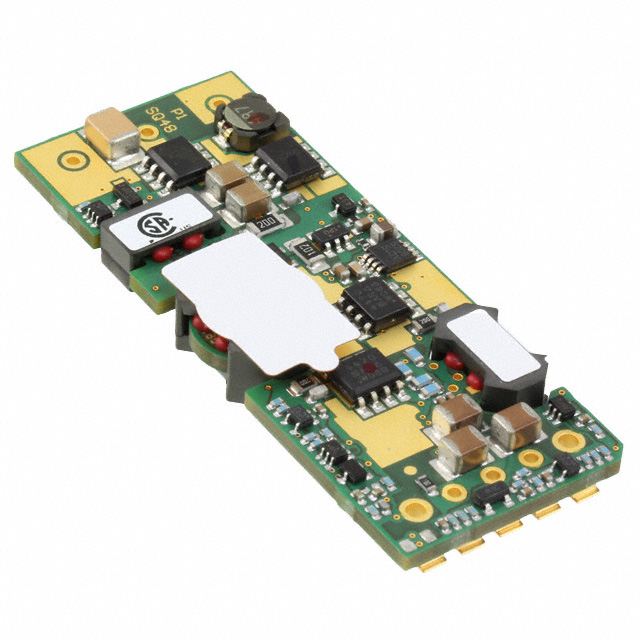

SQ48T15033-PBB0G

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 50W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 3.3V 50W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	144	$ 76.57

General part information

Isolated Module DC DC Converter 1 Output 3.3V 15A 36V - 75V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SQ48T15033-PBB0G	SQ48T15033 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	15 A	15 A
Features	OTP, Remote On/Off, OVP, UVLO, OCP	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-DIP Module, 1/8 Brick	Eighth Brick, 8-DIP Module, 1/8 Brick
Power (Watts)	50 W	50 W
Size / Dimension [x]	2.3 in	2.3 in
Size / Dimension [x]	58.4 mm	58.4 mm
Size / Dimension [y]	0.9 "	0.9 "
Size / Dimension [y]	22.9 mm	22.9 mm
Size / Dimension [z]	6.6 mm	6.6 mm
Size / Dimension [z]	0.26 "	0.26 "
Supplier Device Package	-	Eighth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	2000 V	2000 V
Voltage - Output 1	3.3 V	3.3 V

DC DC CONVERTER 3.3V 50W

Part	Power (Watts)	Mounting Type	Voltage - Isolation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output (Max) [Max]	Supplier Device Package	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Features	Voltage - Output 1	Package / Case	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]
Bel Power Solutions SQ48T15033-NBC0G	50 W	Through Hole	2000 V	ITE (Commercial)	85 °C	-40 °C	Isolated Module	15 A	Eighth Brick	36 V	1	75 V	OCP, OTP, OVP, Remote On/Off, UVLO	3.3 V	Eighth Brick
Bel Power Solutions SQ48T15033-NAC0G	50 W	Through Hole	2000 V	ITE (Commercial)	85 °C	-40 °C	Isolated Module	15 A		36 V	1	75 V	OCP, OTP, OVP, Remote On/Off, UVLO	3.3 V	1/8 Brick, 8-DIP Module	Active Low, Enable	0.9 "	2.3 in	22.9 mm	58.4 mm	6.6 mm	0.26 "
Bel Power Solutions SQ48T15033-PBB0G	50 W	Through Hole	2000 V	ITE (Commercial)	85 °C	-40 °C	Isolated Module	15 A		36 V	1	75 V	OCP, OTP, OVP, Remote On/Off, UVLO	3.3 V	1/8 Brick, 8-DIP Module	Active High, Enable	0.9 "	2.3 in	22.9 mm	58.4 mm	6.6 mm	0.26 "
