141013-2

Active

TE Connectivity AMP Connectors

CONN QC RCPT 0.250 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 0.250 CRIMP

Technical Specifications

Parameters and characteristics for this part

CONN QC RCPT 0.250 CRIMP

Part	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Contact Material	Gender	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Terminal Type	Mounting Type	Contact Finish	Tab Width	Tab Width	Termination	Tab Length	Tab Length	Insulation
TE Connectivity AMP Connectors 141013-2	0.122 in	0.157 in	3.99 mm	3.1 mm	Brass	Female	0.032 in	0.81 mm	0.753 in	19.13 mm	Standard	Free Hanging (In-Line)	Tin	6.35 mm	0.25 in	Crimp	7.75 mm	0.305 in	Non-Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

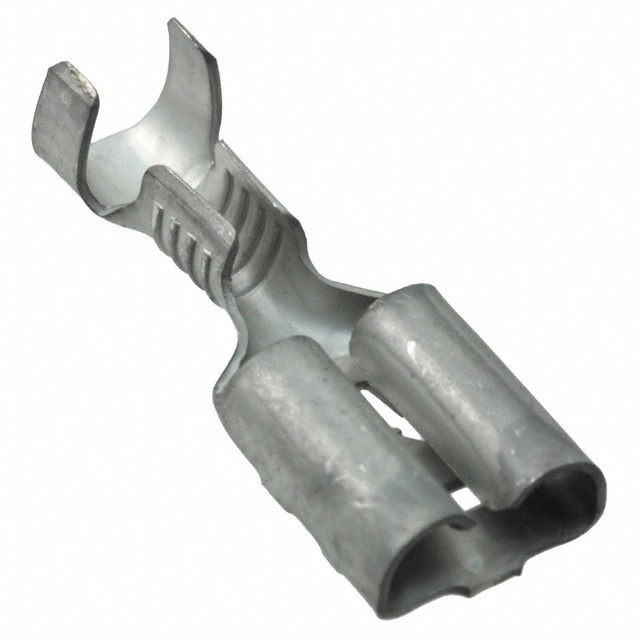

0.250" (6.35mm) Quick Connect Female Crimp Connector Non-Insulated
