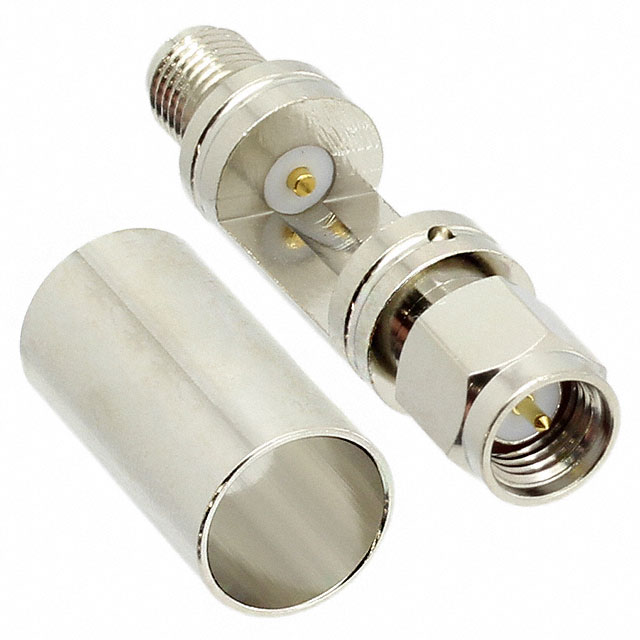

SMA-KIT-1.5MF

Active

Crystek Corporation

COAX ADAPT SMA TO SMA

Deep-Dive with AI

Search across all available documentation for this part.

SMA-KIT-1.5MF

Active

Crystek Corporation

COAX ADAPT SMA TO SMA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.22

Description

General part information

- Series

Adapter Coaxial Connector SMA Jack, Female Socket To SMA Plug, Male Pin

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMA-KIT-1.5MF	- Series

Adapter Series	SMA to SMA	SMA to SMA
Adapter Type	Plug to Jack	Plug to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Stainless Steel, Brass
Cable Group	-	Semflex HP190, Harbour LL142, RG-405 (.085" Semi Rigid), Semflex LA290, Harbour SS402, IW 1501
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Connector Style	-	SMA, TNCA, BNC, N Type
Connector Style	-	2.4 - 2.92 mm
Connector Style	-	OS-50
Connector Style	-	APC-2.4
Connector Type	-	Female Socket, Jack, Male Pin, Plug
Contact Termination	-	Solder
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	Female Socket, SMA Jack	Female Socket, SMA Jack
Convert To (Adapter End)	SMA Plug, Male Pin	SMA Plug, Male Pin
Dielectric Material	-	Polytetrafluoroethylene (PTFE), Polyetherimide (PEI), Polyphenylene Oxide (PPO), Polystyrene (PS)
Fastening Type	-	Bayonet Lock
Features	-	External Connectors
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	Connector, Washer, Nut
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	-	1
Shield Termination	-	Clamp
Style	Straight	Straight

- Series

CONN SMA JACK STR SOLDER

Part	Mounting Type	Cable Group	Dielectric Material	Connector Type	Center Contact Material	Contact Termination	Housing Color	Body Material	Shield Termination	Center Contact Plating	Connector Style	Number of Ports	Body Finish	Fastening Type	Impedance	Features	Convert To (Adapter End)	Conversion Type	Convert From (Adapter End)	Style	Adapter Series	Adapter Type	Connector Style	Mounting Feature	Includes
Crystek Corporation CS-SF-MSC	Free Hanging (In-Line)	Semflex HP190	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Beryllium Copper	Solder	Silver	Stainless Steel	Clamp	Gold	SMA	1
Crystek Corporation CS-TM-MHA	Free Hanging (In-Line)	Harbour LL142	Polyetherimide (PEI)	Male Pin, Plug	Beryllium Copper	Solder	Silver	Stainless Steel	Clamp	Gold	TNCA	1
Crystek Corporation BNC-KIT-2.6MF	Free Hanging (In-Line)				Brass			Brass		Gold	BNC	1	Nickel	Bayonet Lock	50 Ohms	External Connectors
Crystek Corporation SMA-KIT-1.5MF	Free Hanging (In-Line)				Brass			Brass		Gold			Nickel				Male Pin, SMA Plug	Same Series	Female Socket, SMA Jack	Straight	SMA to SMA	Plug to Jack
Crystek Corporation CS-FM-MSC	Free Hanging (In-Line)	Semflex HP190	Polyphenylene Oxide (PPO), Polystyrene (PS)	Male Pin, Plug	Beryllium Copper	Solder	Silver	Stainless Steel	Clamp	Gold		1											2.92 mm
Crystek Corporation CS-FFB-MSR		RG-405 (.085" Semi Rigid)		Female Socket, Jack	Beryllium Copper	Solder	Silver	Stainless Steel	Clamp	Gold		1											2.92 mm	Bulkhead - Front Side Nut	Connector, Nut, Washer
Crystek Corporation CS-SM-MHA	Free Hanging (In-Line)	Harbour LL142	Polytetrafluoroethylene (PTFE)	Male Pin, Plug	Beryllium Copper	Solder	Silver	Stainless Steel	Clamp	Gold	SMA	1
Crystek Corporation CS-NM-MSD	Free Hanging (In-Line)	Semflex LA290	Polytetrafluoroethylene (PTFE)	Male Pin, Plug	Beryllium Copper	Solder	Silver	Stainless Steel	Clamp	Gold	N Type	1
Crystek Corporation CS-TM-MSC	Free Hanging (In-Line)	Semflex HP190	Polyetherimide (PEI)	Male Pin, Plug	Beryllium Copper	Solder	Silver	Stainless Steel	Clamp	Gold	TNCA	1
Crystek Corporation CS-SF-MHA	Free Hanging (In-Line)	Harbour LL142	Polyetherimide (PEI)	Female Socket, Jack	Beryllium Copper	Solder	Silver	Stainless Steel	Clamp	Gold	SMA	1
