MADP-6538
ActiveMicro-Mode
ADAPT SMPM PLG TO SMA PLG
MADP-6538
ActiveMicro-Mode
ADAPT SMPM PLG TO SMA PLG
Description
General part information
MADP-6538

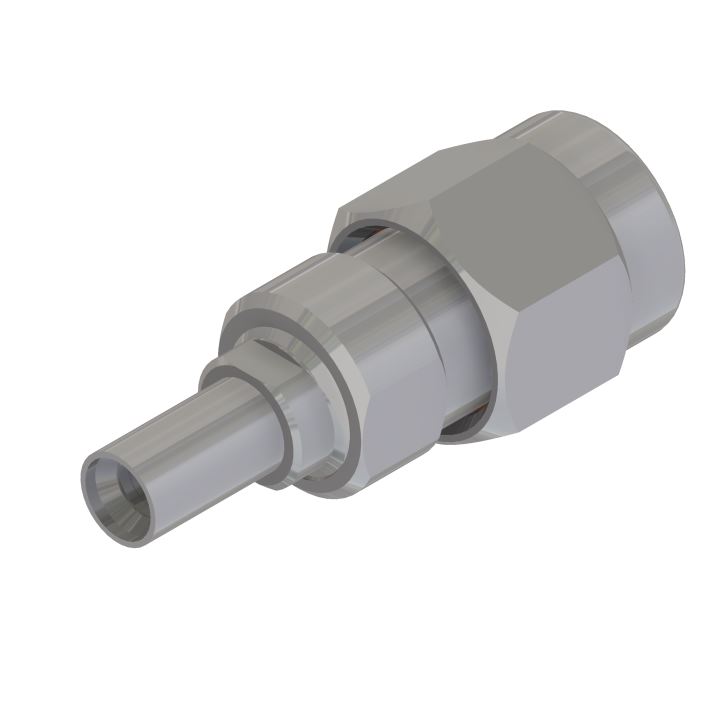

Adapter Coaxial Connector SMA Plug, Male Pin To SMPM Plug, Male Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | MADP-6538 |
|---|---|
| Adapter Series | SMA to SMPM |
| Adapter Type | Plug to Plug |
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | SMPM Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Features | Full Detent |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
