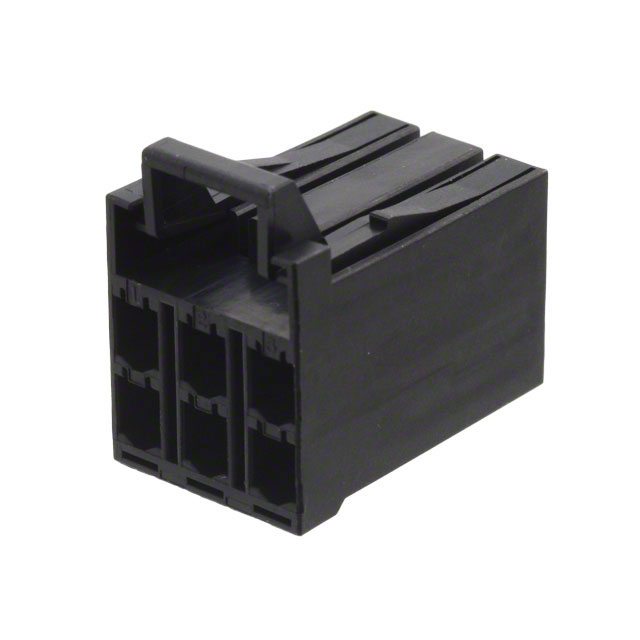

1318095-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 5.08MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	1318095-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Thermoplastic, Glass Filled, Polyester
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Row Spacing	5.08 mm
Row Spacing	0.2 in

CONN RCPT HSG 6POS 5.08MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Contact Type	Number of Positions	Insulation Material	Row Spacing	Row Spacing	Color	Mounting Type	Connector Type	Note	Number of Rows	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 1318095-1	105 ░C	-55 °C	Crimp	Female Socket	6	Glass Filled, Polyester, Thermoplastic	5.08 mm	0.2 in	Black	Free Hanging (In-Line)	Receptacle	Contacts Not Included	2	0.2 in	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Black 0.200" (5.08mm)

Technical documentation and resources
