1376133-2

Active

TE Connectivity AMP Connectors

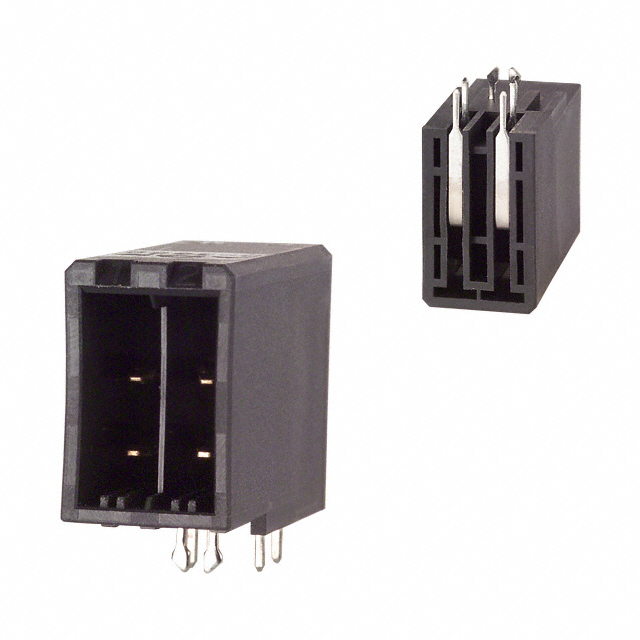

CONN HEADER R/A 4POS 5.08MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 4POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	1376133-2

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Gold, PdNi +Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	0.774 in
Insulation Height	19.67 mm
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Row Spacing - Mating [x]	5.08 mm
Row Spacing - Mating [x]	0.2 "
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 V

CONN HEADER R/A 4POS 5.08MM

Part	Number of Positions	Applications	Contact Shape	Number of Rows	Number of Positions Loaded	Termination	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Style	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Voltage Rating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Shrouding	Contact Material	Contact Finish - Mating	Insulation Material	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]
TE Connectivity AMP Connectors 1376133-2	4	General Purpose, Industrial	Rectangular	2	All	Solder	Through Hole, Right Angle	105 ░C	-55 °C	Header	5.08 mm	0.2 "	Detent Lock	Board to Board, Cable	5.08 mm	0.2 in	Tin	UL94 V-0	600 V	0.774 in	19.67 mm	15 µin	0.38 µm	Black	Shrouded - 4 Wall	Copper Alloy	Gold, PdNi +Gold	Glass Filled, Polyester, Thermoplastic	Tab	0.15 in	3.81 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 4 position 0.200" (5.08mm)
