ADT-2582-NF-SMM-02

Active

Cinch Connectivity Solutions Midwest Microwave

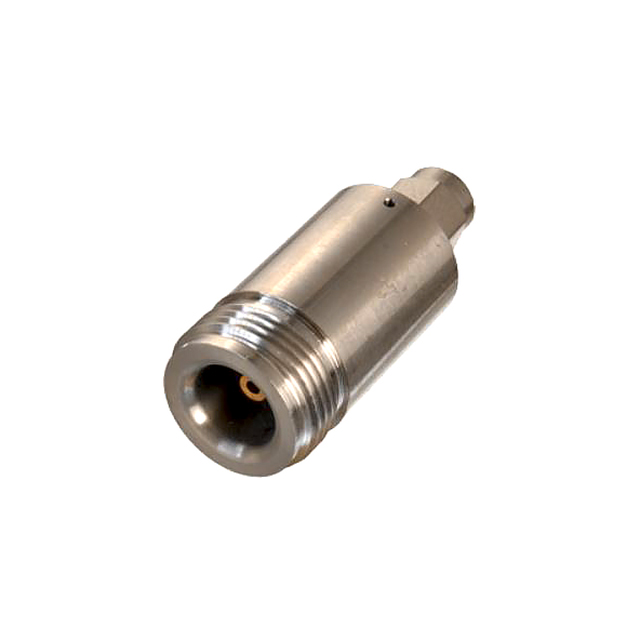

CONN ADAPT N JACK TO SMA PLUG

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

CONN ADAPT N JACK TO SMA PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	ADT-2582-NF-SMM-02

Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT N JACK TO SMA PLUG

Part	Center Contact Material	Convert From (Adapter End)	Style	Dielectric Material	Adapter Type	Mounting Type	Impedance	Center Contact Plating	Conversion Type	Convert To (Adapter End)	Frequency - Max [Max]	Body Material
Cinch Connectivity Solutions Midwest Microwave ADT-2582-NF-SMM-02	Beryllium Copper	SMA Plug, Male Pin	Straight	Polytetrafluoroethylene (PTFE)	Plug to Jack	Free Hanging (In-Line)	50 Ohms	Gold	Between Series	Female Socket, N Jack	18 GHz	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
