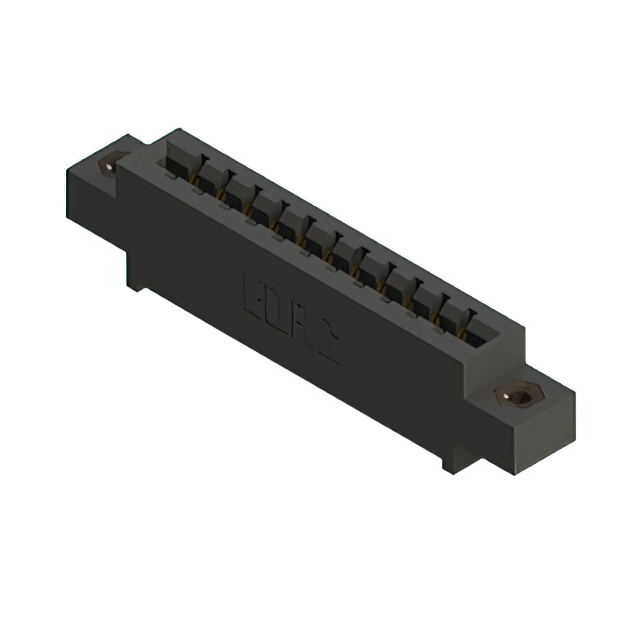

387-011-524-608
ActiveEDAC Inc.
3.96MM STRAIGHT 11P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-011-524-608
ActiveEDAC Inc.
3.96MM STRAIGHT 11P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-011-524-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 11 |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
387-011 Series
...
| Part | Flange Feature | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Gender | Contact Material | Number of Rows | Read Out | Number of Positions/Bay/Row [custom] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Positions | Card Type | Pitch [x] | Pitch [x] | Termination Rows | Material - Insulation | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | ||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | 3.96 mm | 0.156 in |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | ||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | 3.25 mm | 0.128 " |
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | ||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole Right Angle | 3.25 mm | 0.128 " |
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | ||
EDAC Inc. | Floating Bobbin Top Mount Opening | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | 2.95 mm | 0.116 in |
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Wire Wrap | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | ||
EDAC Inc. | Flush Mount Side Opening Unthreaded | Cantilever | 10 Áin | 0.25 Ám | Gold | Female | Copper Alloy | 1 | Single | 11 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Solder | 11 | Non Specified - Single Edge | 0.156 in | 3.96 mm | 1 | Polyester Thermoplastic | Through Hole | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-011 Series
11 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
