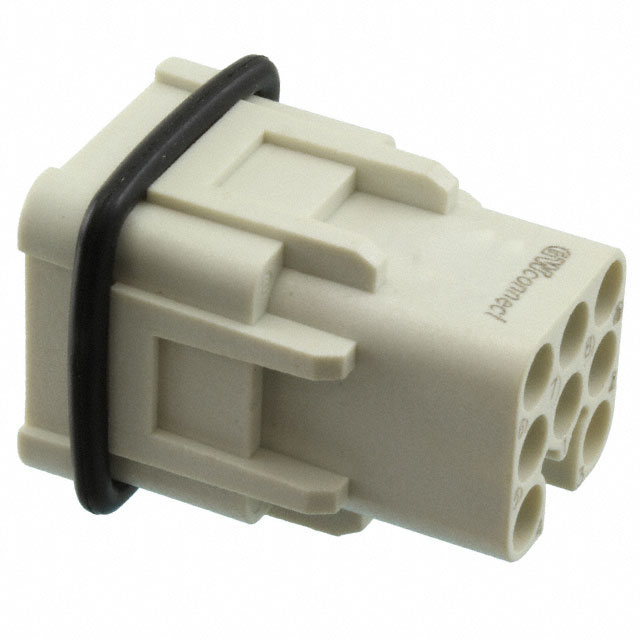

Specification	0936010079

Color	Gray
Connector Type	Insert without Contacts
Current Rating	10 A
Gender	Male
Housing Material	Nylon, Polyamide, Glass Filled, PA
Material Flammability Rating	UL94 V-0
Number of Positions	7
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Position Types	Ground
Size	3A
Termination Style	Crimp
Voltage Rating	250 V
