Q-7105A0003.75M

Active

Amphenol Custom Cable

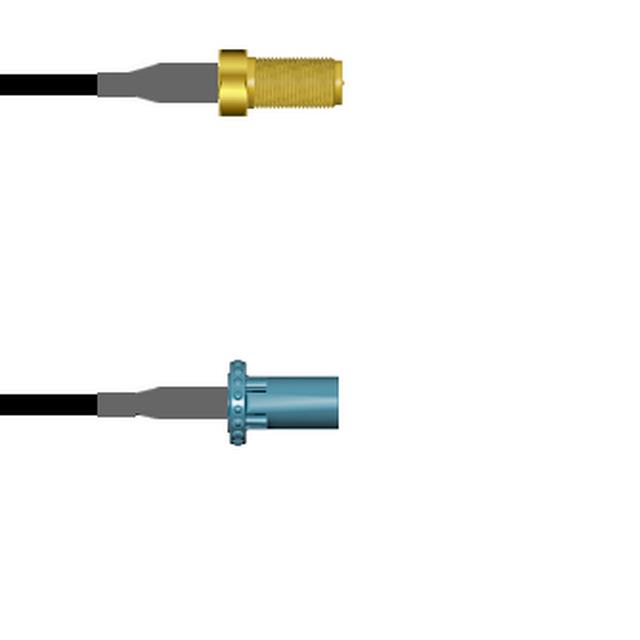

CBL ASSY SMA-FAKRA II J-P 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-7105A0003.75M

Active

Amphenol Custom Cable

CBL ASSY SMA-FAKRA II J-P 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-7105A0003.75M	Q-7105A0 Series

1st Connector	RP-SMA Jack	RP-SMA Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	Fakra II (Gen 2.0) Plug	Fakra II (Gen 2.0) Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Impedance	50 Ohms	50 Ohms
Cable Type	RG-174	RG-174, RG-316
Color	Black	Black, Copper
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	1 GHz	1 - 3 GHz
Length	29.53 "	3 - 118.1 "
Length	750 mm	1 - 1200 cm
Length	-	9.843 "
Length	-	250 - 457.2 mm
Length	-	3.3 - 9.8 ft
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	RP-SMA to Fakra II	RP-SMA to Fakra II

Q-7105A0 Series

CBL ASSY SMA-FAKRA II J-P 19.69"

Part	Length	Length	1st Connector	Frequency - Max [Max]	Style	Features	2nd Connector	Color	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Type	Cable Impedance	1st Contact Gender	Cable Type	Connector Impedance	2nd Contact Gender	Length [x]	Length [x]	Length	Length [x]
Amphenol Custom Cable Q-7105A00030.5M	50 cm	19.69 "	RP-SMA Jack	1 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Black	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-174	50 Ohms	Male
Amphenol Custom Cable Q-7105A0003.25M			RP-SMA Jack	1 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Black	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-174	50 Ohms	Male	9.843 "	250 mm
Amphenol Custom Cable Q-7105A0003108I	2.7 m	108 in	RP-SMA Jack	1 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Black	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-174	50 Ohms	Male			9 ft
Amphenol Custom Cable Q-7105A0003084I	2.1 m	84 in	RP-SMA Jack	1 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Black	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-174	50 Ohms	Male			7 ft
Amphenol Custom Cable Q-7105A0003018I			RP-SMA Jack	1 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Black	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-174	50 Ohms	Male		457.2 mm		457.2 mm
Amphenol Custom Cable Q-7105A0005002M	2 m	78.7 in	RP-SMA Jack	3 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-316	50 Ohms	Male			6.6 ft
Amphenol Custom Cable Q-7105A0003060I	1.5 m	5 '	RP-SMA Jack	1 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Black	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-174	50 Ohms	Male			5 ft
Amphenol Custom Cable Q-7105A00050.5M	50 cm	19.69 "	RP-SMA Jack	3 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-316	50 Ohms	Male
Amphenol Custom Cable Q-7105A0003048I	1200 mm	48 in	RP-SMA Jack	1 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Black	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-174	50 Ohms	Male			4 ft
Amphenol Custom Cable Q-7105A0005003I	76.2 mm	3 in	RP-SMA Jack	3 GHz	RP-SMA to Fakra II	Shielded	Fakra II (Gen 2.0) Plug	Copper	50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	50 Ohms	Male	RG-316	50 Ohms	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 46.14
		25	$ 45.24
		50	$ 44.34
		100	$ 43.44
		250	$ 42.54

Description

General part information

Q-7105A0 Series

Cable Assembly Coaxial RP-SMA to Fakra II RG-174 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
