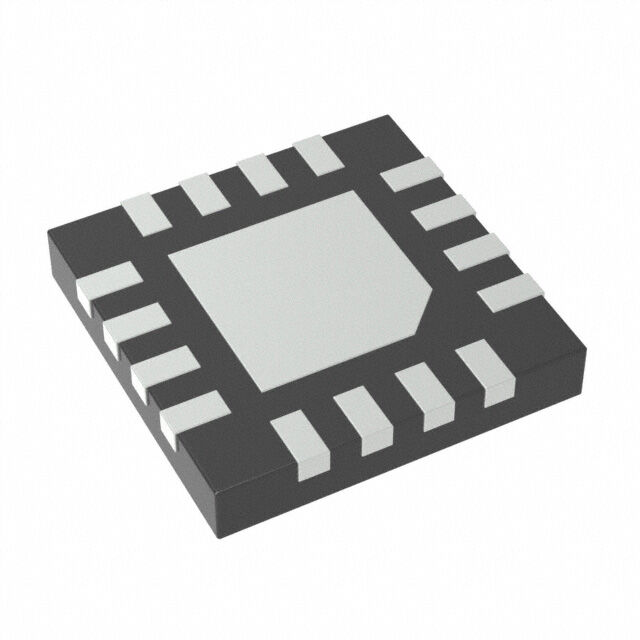

PI5USB2546HZHDEX
ActiveUSB CHARGING PORT CONTROLLER AND LOAD DETECTION POWER SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
PI5USB2546HZHDEX
ActiveUSB CHARGING PORT CONTROLLER AND LOAD DETECTION POWER SWITCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI5USB2546HZHDEX |
|---|---|
| Current - Output (Max) [Max] | 2.5 A |
| Fault Protection | UVLO, Current Limiting (Adjustable), Over Temperature |
| Features | Status Flag |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 16-UFQFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 73 mOhm |
| Supplier Device Package | 16-UQFN (3x3) |
| Switch Type | USB Switch |
| Voltage - Load [Max] | 5.5 V |
| Voltage - Load [Min] | 4.5 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| Digi-Reel® | 1 | $ 1.17 | ||
| 10 | $ 1.04 | |||
| 25 | $ 0.99 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.53 | |||
| Tape & Reel (TR) | 3500 | $ 0.51 | ||
| 7000 | $ 0.48 | |||
| 10500 | $ 0.47 | |||
| 17500 | $ 0.45 | |||
Description
General part information
PI5USB2546AQ Series
The PI5USB2546AQ series is a USB charging port controller and power switch with an integrated USB 2.0 high-speed data line (D+/D-) switch. PI5USB2546AQ provides the electrical signatures on D+/D- to support charging schemes listed under device feature section. The series is compatible with both popular BC1.2 compliant and non-BC1.2 compliant devices.
