PLR375C-306

Active

Cinch Connectivity Solutions Trompeter

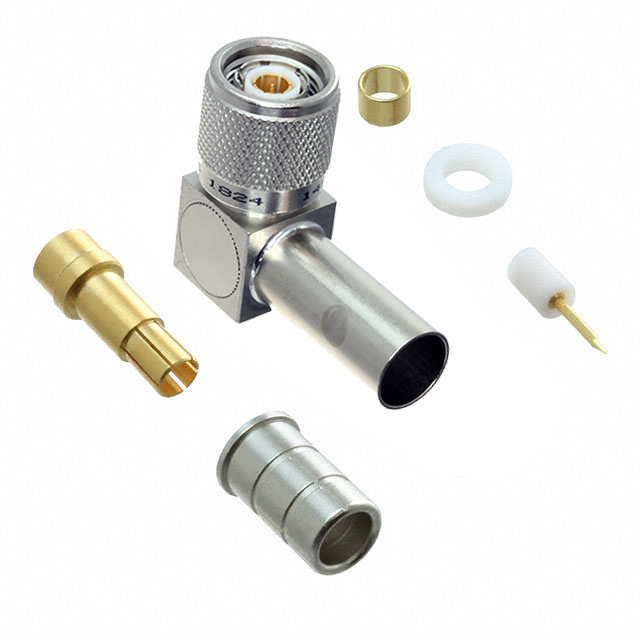

CONN TRT PLUG R/A CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRT PLUG R/A CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLR375C-306	PLR375C Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	M17/176-00002, TRC-50-2	Raychem 10614, M17/176-00002, TRC-50-2
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TRT, Triaxial	TRT, Twinaxial, Triaxial
Connector Type	Plug, Male Pin (Concentric)	Plug, Male Pin (Concentric)
Contact Termination	Crimp	Crimp
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Strain Relief, 1 Connector	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	400 V	400 V

CONN TRT PLUG R/A CRIMP

Part	Housing Color	Shield Termination	Cable Group	Mating Cycles	Connector Type	Body Finish	Center Contact Plating	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Impedance	Center Contact Material	Mounting Type	Voltage Rating	Connector Style	Frequency - Max [Max]	Number of Ports	Contact Termination
Cinch Connectivity Solutions Trompeter PLR375C-221	Silver	Crimp	Raychem 10614	500	Plug, Male Pin (Concentric)	Nickel	Gold	Brass	-65 ░C	165 °C	1 Connector, 1 Heat Shrink, 1 Strain Relief	Non-Constant	Beryllium Copper	Free Hanging (In-Line), Right Angle	400 V	TRT, Twinaxial	500 MHz	1	Crimp
Cinch Connectivity Solutions Trompeter PLR375C-306	Silver	Crimp	M17/176-00002, TRC-50-2	500	Plug, Male Pin (Concentric)	Nickel	Gold	Brass	-65 ░C	165 °C	1 Connector, 1 Strain Relief	Non-Constant	Beryllium Copper	Free Hanging (In-Line), Right Angle	400 V	Triaxial, TRT	500 MHz	1	Crimp
Cinch Connectivity Solutions Trompeter PLR375C-201	Silver	Crimp	M17/176-00002	500	Plug, Male Pin (Concentric)	Nickel	Gold	Brass	-65 ░C	165 °C	1 Connector, 1 Heat Shrink, 1 Strain Relief	Non-Constant	Beryllium Copper	Free Hanging (In-Line), Right Angle	400 V	TRT, Twinaxial	500 MHz	1	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRT, Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line), Right Angle Crimp

Technical documentation and resources

No documents available
