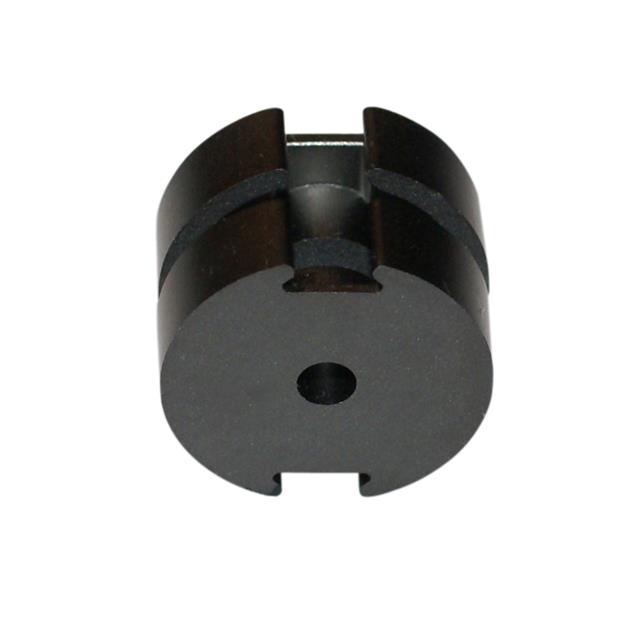

Specification	5695110821

Core Factor (ΣI/A) mm⁻¹	95 mm⁻¹
Core Type	PS
Diameter	0.437 in
Effective Area (Ae)	17.3 mm²
Effective Length (le)	16.5 mm
Effective Magnetic Volume (Ve)	284 mm³
Finish	Uncoated
Gap	Ungapped
Height	0.13 in
Initial Permeability (µi)	3000
Material	95
Tolerance	25 %
