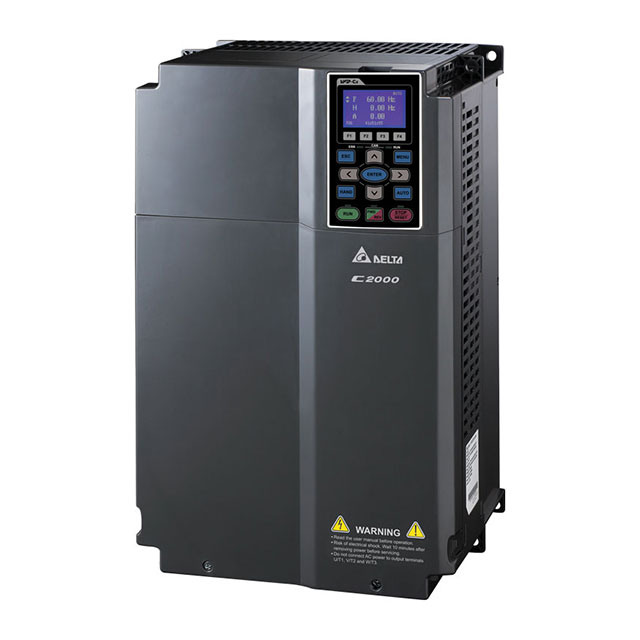

VFD055C23A

Delta Electronics/Industrial Automation

VFD-C2000, 7.5HP 230V, FOC & TRQ

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

VFD-C2000, 7.5HP 230V, FOC & TRQ

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VFD055C23A	VFD055 Series

Current - Output	25 A	9.9 - 25 A
Interface	CAN	CAN, RS-485
Mounting Type	Chassis Mount	Chassis Mount, DIN Rail
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Voltage - Supply	230 VAC	230 - 575 VAC
Wattage - Load	5.5 kW	5.5 kW

VFD-CP2000, 7.5HP 460V, 3PHASE I

Part	Voltage - Supply	Mounting Type	Current - Output	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Interface	Wattage - Load
Delta Electronics/Industrial Automation VFD055CP43B-21	460 VAC	Chassis Mount	13 A	-10 °C	50 °C	CAN	5.5 kW
Delta Electronics/Industrial Automation VFD055C23A	230 VAC	Chassis Mount	25 A	-10 °C	50 °C	CAN	5.5 kW
Delta Electronics/Industrial Automation VFD055E43A	460 VAC	Chassis Mount, DIN Rail	13 A	-10 °C	50 °C	RS-485	5.5 kW
Delta Electronics/Industrial Automation VFD055E23A	230 VAC	Chassis Mount, DIN Rail	25 A	-10 °C	50 °C	RS-485	5.5 kW
Delta Electronics/Industrial Automation VFD055CP23A-21	230 VAC	Chassis Mount	21 A	-10 °C	50 °C	CAN	5.5 kW
Delta Electronics/Industrial Automation VFD055C53A-21	575 VAC	Chassis Mount	9.9 A	-10 °C	50 °C	CAN	5.5 kW
Delta Electronics/Industrial Automation VFD055CP4EB-21	460 VAC	Chassis Mount	13 A	-10 °C	50 °C	CAN	5.5 kW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 715.52

General part information

VFD-C2000, 7.5HP 230V, FOC & TRQ

Technical documentation and resources

No documents available
