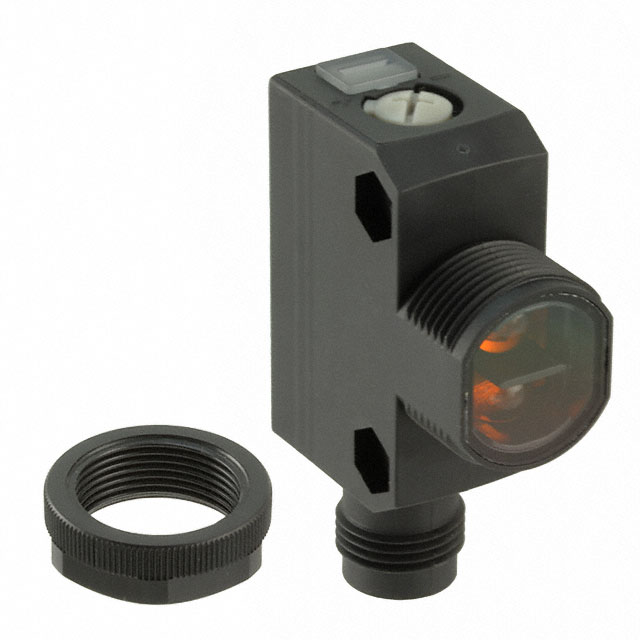

E3Z-FDP27
ActiveOmron Automation and Safety
SENSOR REFLECTIVE 500MM PNP
E3Z-FDP27
ActiveOmron Automation and Safety
SENSOR REFLECTIVE 500MM PNP
Description
General part information
E3Z-FDP27
Reflective, Diffuse Optical Sensor 19.685" (500mm) PNP - Open Collector
Technical Specifications
Parameters and characteristics for this part
| Specification | E3Z-FDP27 |
|---|---|
| Adjustment Turns | 1 turn |
| Connection Method | 4POS, M12, Connector |
| Ingress Protection | IP69K |
| Light Source | Red LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | PNP - Open Collector |
| Response Time | 500 µs |
| Sensing Distance | 19.685 " |
| Sensing Method | Reflective, Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
