82911465NA

Active

Souriau-Sunbank by Eaton

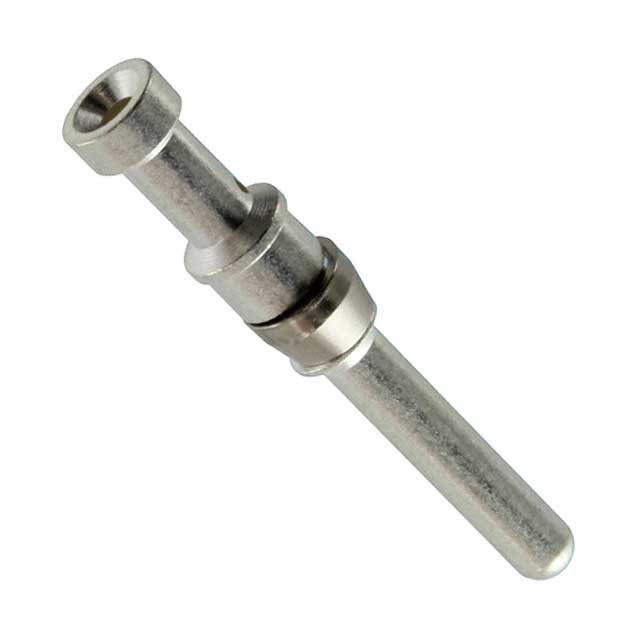

CONTACT PIN 14AWG CRIMP SILVER

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONTACT PIN 14AWG CRIMP SILVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 3.49

General part information

Pin Contact 14 AWG Size 12 Crimp Silver

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

CONTACT SOCKET 20AWG CRIMP SLVR

Part	Contact Termination	Contact Type	Wire Gauge or Range - mm²	Contact Finish	Type	Contact Size	Wire Gauge or Range - AWG	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]
Souriau-Sunbank by Eaton 82911458A	Crimp	Socket	0.5 mm²	Silver	Power, Machined	12	20 AWG	Copper Alloy	2 µm	78.7 µin
Souriau-Sunbank by Eaton 82911464A	Crimp	Socket	2.5 mm²	Silver	Power, Machined	12	14 AWG	Copper Alloy	2 µm	78.7 µin
Souriau-Sunbank by Eaton 82911459NA	Crimp	Pin	0.5 mm²	Silver	Power, Machined	12	20 AWG	Copper Alloy	2 µm	78.7 µin
Souriau-Sunbank by Eaton 82911467NK	Crimp	Pin	4 mm²	Gold	Power, Machined	12	12 AWG	Copper Alloy	0.41 µm	16 µin
Souriau-Sunbank by Eaton 82911465NK	Crimp	Pin	2.5 mm²	Gold	Power, Machined	12	14 AWG	Copper Alloy	0.41 µm	16 µin
Souriau-Sunbank by Eaton 82911463NA	Crimp	Pin	1.5 mm²	Silver	Power, Machined	12	16 AWG	Copper Alloy	2 µm	78.7 µin
Souriau-Sunbank by Eaton 82911458K	Crimp	Socket	0.5 mm²	Gold	Power, Machined	12	20 AWG	Copper Alloy	0.41 µm	16 µin
Souriau-Sunbank by Eaton 82911456K	Crimp	Socket		Gold	Power, Machined	12		Copper Alloy	0.41 µm	16 µin	0.4 mm²	0.13 mm²	22 AWG	26 AWG
Souriau-Sunbank by Eaton 82911460A	Crimp	Socket		Silver	Power, Machined	12	18 AWG	Copper Alloy	2 µm	78.7 µin	1 mm²	0.75 mm²
Souriau-Sunbank by Eaton 82911466K	Crimp	Socket	4 mm²	Gold	Power, Machined	12	12 AWG	Copper Alloy	0.41 µm	16 µin
