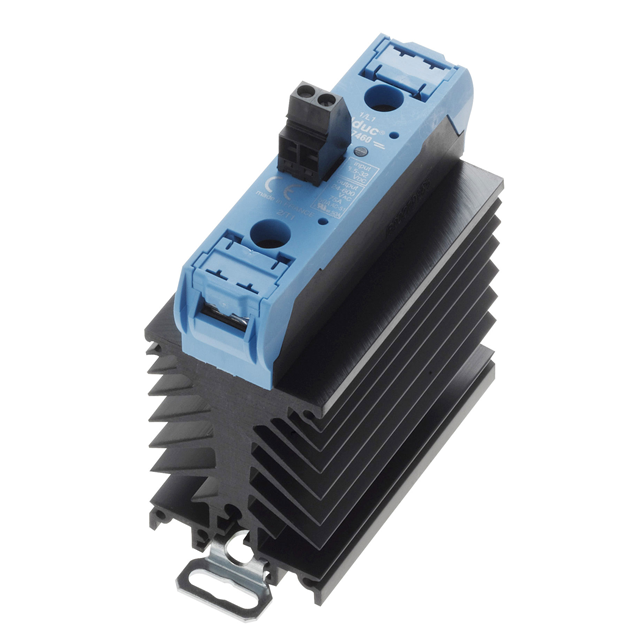

SUM865070
ActiveCelduc Inc.
SSR RELAY SPST-NO 45A 24-510V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SUM865070
ActiveCelduc Inc.
SSR RELAY SPST-NO 45A 24-510V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SUM865070 |
|---|---|
| Approval Agency | CE, cURus |
| Load Current | 45 A |
| Mounting Type | Chassis Mount |
| On-State Resistance (Max) [Max] | 7.5 mOhms |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 3.5 V |
| Voltage - Load [Max] | 510 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 20 | $ 106.78 | |
Description
General part information
SUM865070
Solid State SPST-NO (1 Form A) Module
