MS093-10F-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.366"X0.366" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS093-10F-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.366"X0.366" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS093-10F-NS |
|---|---|
| Height - Overall [z] | 5 mm |
| Height - Overall [z] | 0.197 in |
| Length - Overall [x] | 9.3 mm |
| Length - Overall [x] | 0.366 in |
| Mounting Type | Solder |
| Type | Frame |
| Width - Overall [x] | 0.366 in |
| Width - Overall [x] | 9.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.53 | |
| 10 | $ 1.63 | |||
| 25 | $ 1.40 | |||
| 80 | $ 1.17 | |||
| 230 | $ 1.01 | |||
| 440 | $ 0.93 | |||
| 945 | $ 0.86 | |||
| 2400 | $ 0.79 | |||
| 4900 | $ 0.74 | |||
Description
General part information
MS093-10F-NS

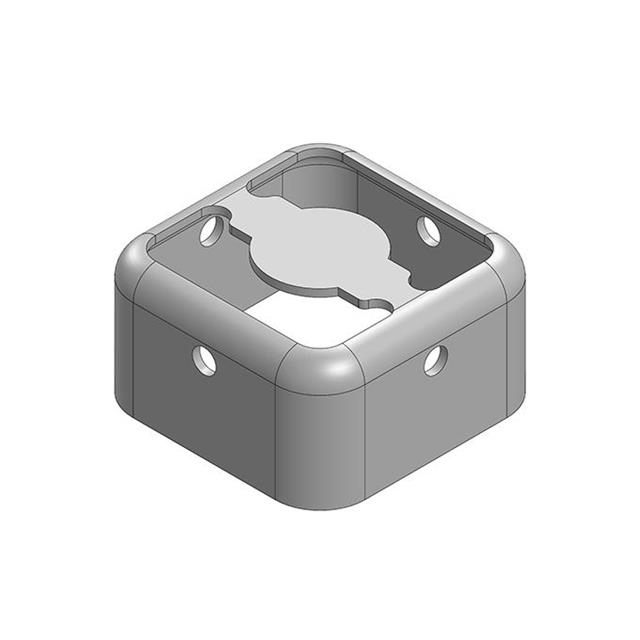

RF Shield Frame 0.366" (9.30mm) X 0.366" (9.30mm) Solder
Documents
Technical documentation and resources
