1-929504-6
ActiveTE Connectivity AMP Connectors
2X 9P JUN-POW-TIMGH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-929504-6
ActiveTE Connectivity AMP Connectors
2X 9P JUN-POW-TIMGH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-929504-6 | 929504 Series |
|---|---|---|
| Color | Natural | Black, Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | 18 | 8 - 22 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing | 0.22 in | 0.22 in |
| Row Spacing | 5.6 mm | 5.6 mm |
929504 Series

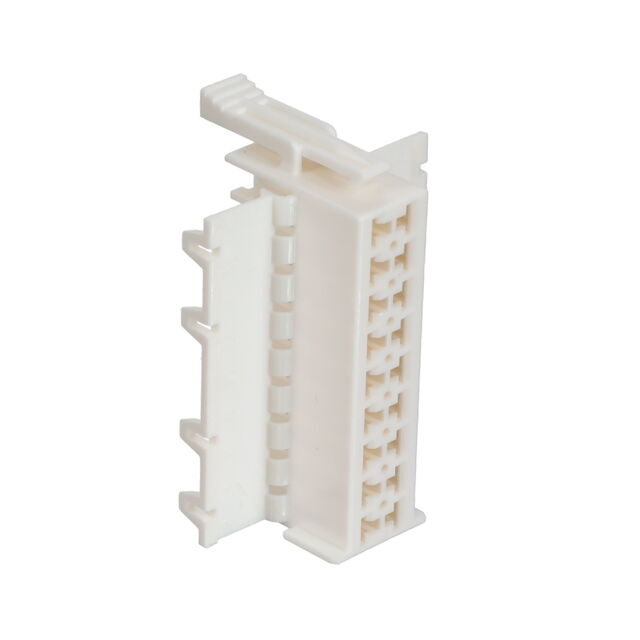

CONN RCPT HSG 18POS 5.00MM
| Part | Contact Termination | Row Spacing | Row Spacing | Note | Pitch [x] | Pitch [x] | Insulation Material | Contact Type | Color | Mounting Type | Connector Type | Number of Positions | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 929504-6 | Crimp | 0.22 in | 5.6 mm | Contacts Not Included | 5 mm | 0.197 in | Polybutylene Terephthalate (PBT) | Female Socket | Black | Free Hanging (In-Line) | Receptacle | 18 | 2 | |||
TE Connectivity AMP Connectors 1-929504-6 | Crimp | 0.22 in | 5.6 mm | 5 mm | 0.197 in | Polybutylene Terephthalate (PBT) | Female Socket | Natural | Free Hanging (In-Line) | Receptacle | 18 | 2 | 100 °C | -40 °C | Push-Pull | |
TE Connectivity AMP Connectors 929504-3 | Crimp | 0.22 in | 5.6 mm | Contacts Not Included | 5 mm | 0.197 in | Polybutylene Terephthalate (PBT) | Female Socket | Black | Free Hanging (In-Line) | Receptacle | 8 | 2 | |||
TE Connectivity AMP Connectors 929504-7 | Crimp | 0.22 in | 5.6 mm | Contacts Not Included | 5 mm | 0.197 in | Polybutylene Terephthalate (PBT) | Female Socket | Black | Free Hanging (In-Line) | Receptacle | 22 positions | 2 | |||
TE Connectivity AMP Connectors 1-929504-7 | Crimp | 0.22 in | 5.6 mm | Contacts Not Included | 5 mm | 0.197 in | Polybutylene Terephthalate (PBT) | Female Socket | Natural | Free Hanging (In-Line) | Receptacle | 22 positions | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.38 | |
| 10 | $ 1.20 | |||
| 25 | $ 1.15 | |||
| 50 | $ 1.13 | |||
| 100 | $ 1.07 | |||
| 250 | $ 0.97 | |||
| 640 | $ 0.90 | |||
| 1280 | $ 0.77 | |||
| 2560 | $ 0.72 | |||
Description
General part information
929504 Series
18 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
