002625011

Active

Altech Corporation

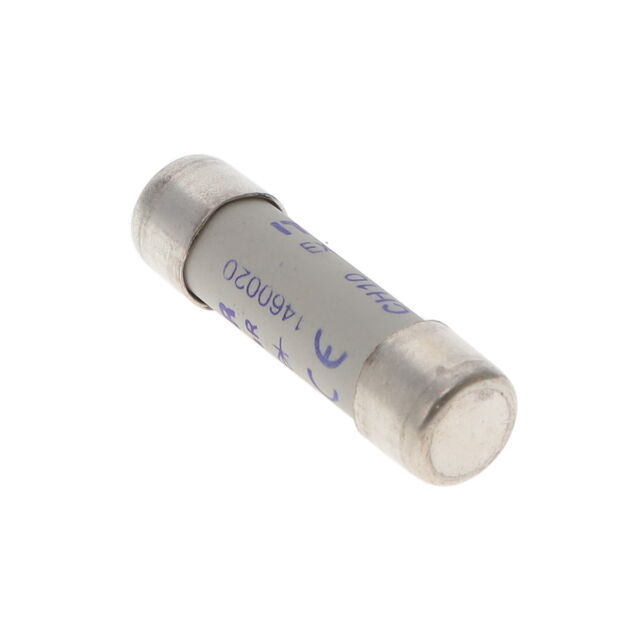

FUSE CRTRDGE 20A 600VAC/700VDC

Search across all available documentation for this part.

Active

Altech Corporation

FUSE CRTRDGE 20A 600VAC/700VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.95

General part information

20A 600 VAC 700 VDC Fuse Cartridge

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	002625011	0026250 Series

Breaking Capacity @ Rated Voltage	-	50 kA
Current Rating (Amps)	20 A	2 - 32 A
Fuse Type	Cartridge	Cartridge
Mounting Type	-	Requires Holder
Package / Case	-	5AG
Package / Case	-	38 mm
Package / Case	-	10 mm
Response Time	-	Slow Blow
Size / Dimension	-	38 mm
Size / Dimension	-	0.406 in
Size / Dimension	-	1.496 "
Size / Dimension	-	10.3 mm
Voltage Rating - AC	600 VAC	600 VAC
Voltage Rating - DC	700 VDC	400 - 900 V

FUSE CRTRDGE 32A 600VAC/400VDC

Part	Current Rating (Amps)	Voltage Rating - DC	Voltage Rating - AC	Fuse Type	Response Time	Mounting Type	Breaking Capacity @ Rated Voltage	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Package / Case	Package / Case [y]	Package / Case [x]
Altech Corporation 002625015	32 A	400 V	600 VAC	Cartridge
Altech Corporation 002625013	25 A	700 VDC	600 VAC	Cartridge
Altech Corporation 002625007	10 A	700 VDC	600 VAC	Cartridge
Altech Corporation 002625019	6 A	700 VDC		Cartridge
Altech Corporation 002625008	12 A	700 VDC	600 VAC	Cartridge
Altech Corporation 002625030	8 A	900 VDC		Cartridge
Altech Corporation 002625006	8 A	700 VDC	600 VAC	Cartridge
Altech Corporation 002625009	16 A	700 VDC	600 VAC	Cartridge	Slow Blow	Requires Holder	50 kA	38 mm	0.406 in	1.496 "	10.3 mm	5AG	38 mm	10 mm
Altech Corporation 002625035	25 A	900 VDC		Cartridge
Altech Corporation 002625027	2 A	900 VDC		Cartridge
