1078590
ActivePhoenix Contact
HC-COM-HHFS-1TTM25-EL-AL
1078590
ActivePhoenix Contact
HC-COM-HHFS-1TTM25-EL-AL
Description
General part information
1078590

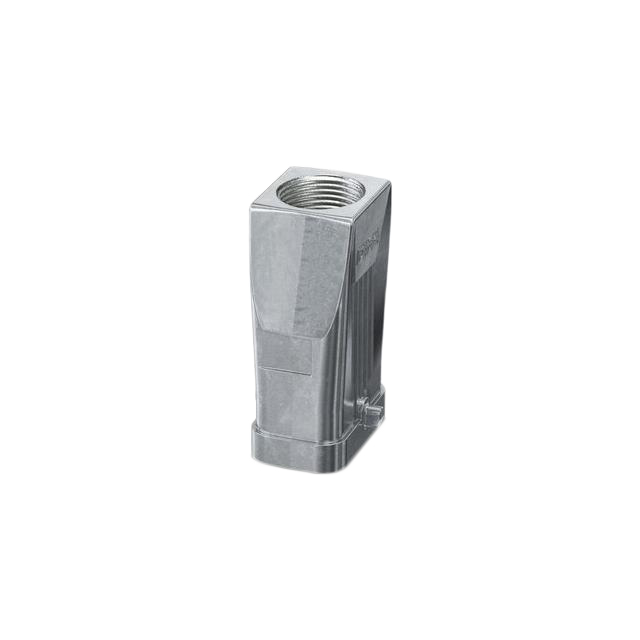

Hood Connector Top Entry M25 IP66 - Dust Tight, Water Resistant
Technical Specifications
Parameters and characteristics for this part
| Specification | 1078590 |
|---|---|
| Connector Type | Hood |
| Features | Salt Water Resistant |
| Housing Color | Gray |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Height | 2.677 in |
| Size / Dimension Length | 1.921 in |
| Size / Dimension Width | 1.535 in |
| Style | Top Entry |
| Thread Size | M25 |
