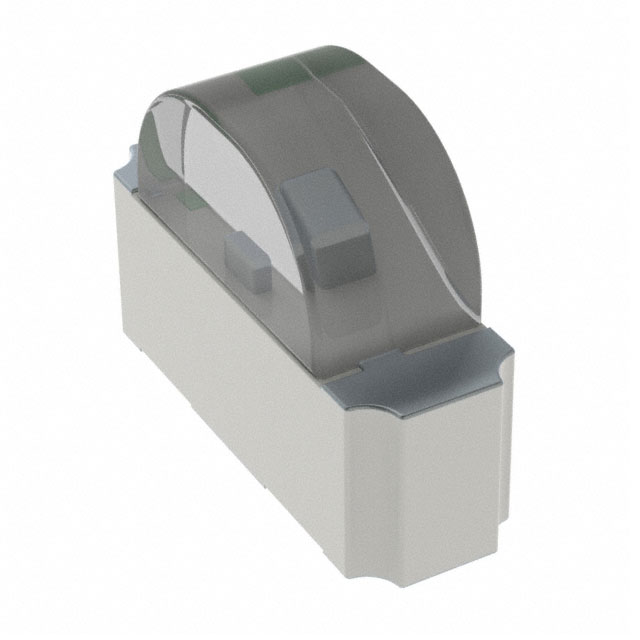

IN-S121ASG
ActiveInolux
LED GREEN CLEAR 1208 SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IN-S121ASG
ActiveInolux
LED GREEN CLEAR 1208 SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IN-S121ASG |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 560 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2.1 mm |
| Supplier Device Package | 1208 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 520 nm |
| Wavelength - Peak | 530 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| Digi-Reel® | 1 | $ 0.46 | ||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.11 | |||
| 15000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.09 | |||
Description
General part information
IN-S121ASG
Green 520nm LED Indication - Discrete 3.2V 2-SMD, No Lead
