RJH1CV6DPK-00#T0
ActiveRenesas Electronics Corporation
IGBT FOR INVERTER APPLICATIONS
Deep-Dive with AI
Search across all available documentation for this part.
RJH1CV6DPK-00#T0
ActiveRenesas Electronics Corporation
IGBT FOR INVERTER APPLICATIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RJH1CV6DPK-00#T0 | 1CVx Series Series |
|---|---|---|
| - | - | |
| Current - Collector (Ic) (Max) [Max] | 60 A | 60 - 70 A |
| Gate Charge | 105 nC | 105 - 166 nC |
| IGBT Type | Trench | Trench |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature | 150 °C | 150 °C |

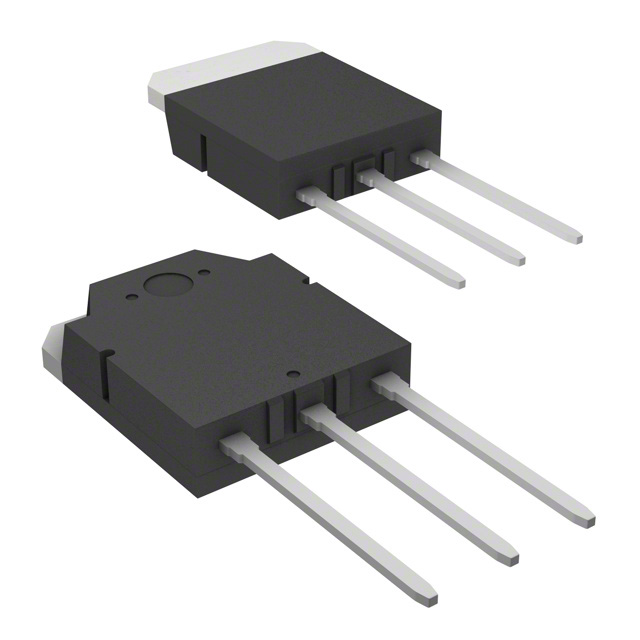

| Package / Case | SC-65-3, TO-3P-3 | TO-247-3, SC-65-3, TO-3P-3 |
| Power - Max [Max] | 290 W | 290 - 320 W |
| Reverse Recovery Time (trr) | 180 ns | 180 - 200 ns |
| Supplier Device Package | TO-3P | TO-247, TO-3P |
| Switching Energy | 2.3 mJ, 1.7 mJ | 1.7 - 3.2 mJ |
| Td (on/off) @ 25°C | 125 ns, 46 ns | 46 - 125 ns |
| Test Condition | 15 V, 30 A, 600 V, 5 Ohm | 5 - 600 V |
| Vce(on) (Max) @ Vge, Ic | 2.6 V | 2.3 - 2.6 V |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 1200 V | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1CVx Series Series
IGBT for Inverter Applications
| Part | Mounting Type | Switching Energy | Power - Max [Max] | Test Condition | Voltage - Collector Emitter Breakdown (Max) [Max] | Gate Charge | IGBT Type | Vce(on) (Max) @ Vge, Ic | Supplier Device Package | Current - Collector (Ic) (Max) [Max] | Package / Case | Operating Temperature | Reverse Recovery Time (trr) | Td (on/off) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation RJH1CV7DPQ-E0#T2 | ||||||||||||||
Renesas Electronics Corporation RJH1CV6DPQ-E0#T2 | ||||||||||||||
Renesas Electronics Corporation RJH1CV5DPQ-E0#T2 | ||||||||||||||
Renesas Electronics Corporation RJH1CV7DPK-00#T0 | ||||||||||||||
Renesas Electronics Corporation RJH1CV6DPK-00#T0 | ||||||||||||||
Renesas Electronics Corporation RJH1CV5DPK-00#T0 | ||||||||||||||
Renesas Electronics Corporation RJH1CV7DPQ-E0#T2 | Through Hole | 2.5 mJ, 3.2 mJ | 320 W | 5 Ohm, 15 V, 35 A, 600 V | 1200 V | 166 nC | Trench | 2.3 V | TO-247 | 70 A | TO-247-3 | 150 °C | 200 ns | |
Renesas Electronics Corporation RJH1CV6DPK-00#T0 | Through Hole | 1.7 mJ, 2.3 mJ | 290 W | 5 Ohm, 15 V, 30 A, 600 V | 1200 V | 105 nC | Trench | 2.6 V | TO-3P | 60 A | SC-65-3, TO-3P-3 | 150 °C | 180 ns | 46 ns, 125 ns |
Description
General part information
1CVx Series Series
IGBT product series for inverter for UPS, motor control, solar power generation, and welding applications, recommended for 1 to 50 kHz frequencies, and guaranteed against short circuit.
