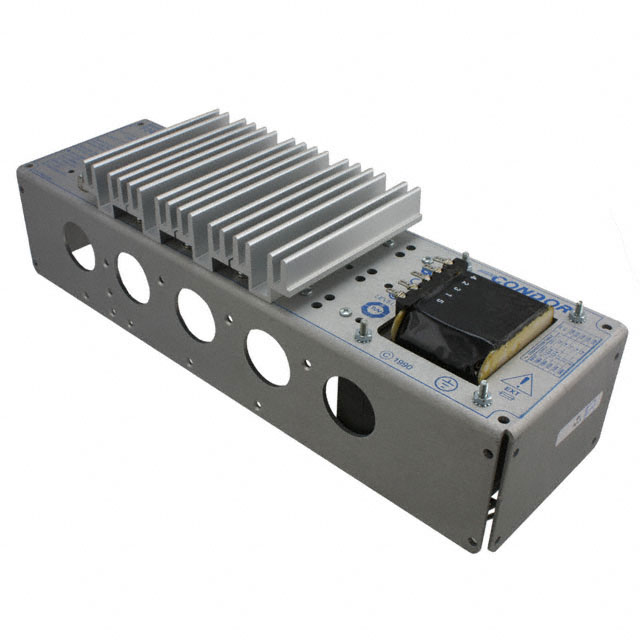

F24-12-A+G

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 288W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 288W

Technical Specifications

Parameters and characteristics for this part

Specification	F24-12-A+G

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	12 A
Efficiency	60 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	288 W
Size / Dimension [x]	16.75 "
Size / Dimension [x]	425.5 mm
Size / Dimension [y]	124 mm
Size / Dimension [y]	4.88 in
Size / Dimension [z]	3.5 "
Size / Dimension [z]	88.9 mm
Type	Linear
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	24 V

AC/DC CONVERTER 24V 288W

Part	Applications	Power (Watts)	Features	Efficiency	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Number of Outputs	Type	Mounting Type
SL POWER / Advanced Energy F24-12-A+G	ITE (Commercial)	288 W	Adjustable Output, Remote Sense, Universal Input	60 %	12 A	124 mm	16.75 "	4.88 in	3.5 "	425.5 mm	88.9 mm	70 °C	0 °C	24 V	240 VAC	100 VAC	CE, cURus, TUV	1	Linear	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear AC DC Converters 1 Output 24V 100 ~ 240 VAC Input
