IS41C16105C-50TI

Obsolete

ISSI, Integrated Silicon Solution Inc

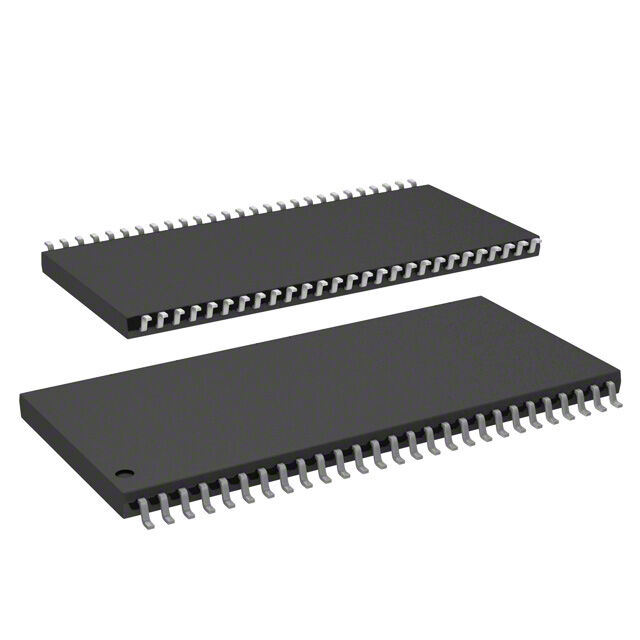

IC DRAM 16MBIT PAR 50TSOP II

Search across all available documentation for this part.

Obsolete

ISSI, Integrated Silicon Solution Inc

IC DRAM 16MBIT PAR 50TSOP II

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS41C16105C-50TI	IS41C16105 Series

Access Time	25 ns	25 ns
Memory Format	DRAM	DRAM
Memory Interface	Parallel	Parallel
Memory Organization	1 M	1 M
Memory Size	16 Mb	16 Mb
Memory Type	Volatile	Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	50-TSOP	50-TSOP, 42-BSOJ
Package / Case	44 Leads	44 Leads
Package / Case	-	10.16 mm
Package / Case	-	10.16 mm
Package / Case [y]	10.16 mm	10.16 mm
Package / Case [y]	10.16 mm	10.16 mm
Supplier Device Package	50-TSOP II	50-TSOP II, 42-SOJ
Technology	DRAM - FP	DRAM - FP
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V
Write Cycle Time - Word, Page [custom]	84 ns	84 ns
Write Cycle Time - Word, Page [custom]	84 ns	84 ns

IC DRAM 16MBIT PAR 50TSOP II

Part	Memory Type	Memory Format	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Memory Size	Memory Organization	Package / Case [y]	Package / Case	Package / Case [y]	Package / Case	Technology	Memory Interface	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Access Time	Package / Case	Package / Case
ISSI, Integrated Silicon Solution Inc IS41C16105C-50TI	Volatile	DRAM	4.5 V	5.5 V	50-TSOP II	85 °C	-40 °C	Surface Mount	16 Mb	1 M	10.16 mm	50-TSOP	10.16 mm	44 Leads	DRAM - FP	Parallel	84 ns	84 ns	25 ns
ISSI, Integrated Silicon Solution Inc IS41C16105C-50KLI	Volatile	DRAM	4.5 V	5.5 V	42-SOJ	85 °C	-40 °C	Surface Mount	16 Mb	1 M		42-BSOJ			DRAM - FP	Parallel			25 ns	10.16 mm	10.16 mm
ISSI, Integrated Silicon Solution Inc IS41C16105C-50KLI-TR	Volatile	DRAM	4.5 V	5.5 V	42-SOJ	85 °C	-40 °C	Surface Mount	16 Mb	1 M		42-BSOJ			DRAM - FP	Parallel			25 ns	10.16 mm	10.16 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DRAM - FP Memory IC 16Mbit Parallel 25 ns 50-TSOP II

Technical documentation and resources
