9486 0101000

Active

Belden Inc.

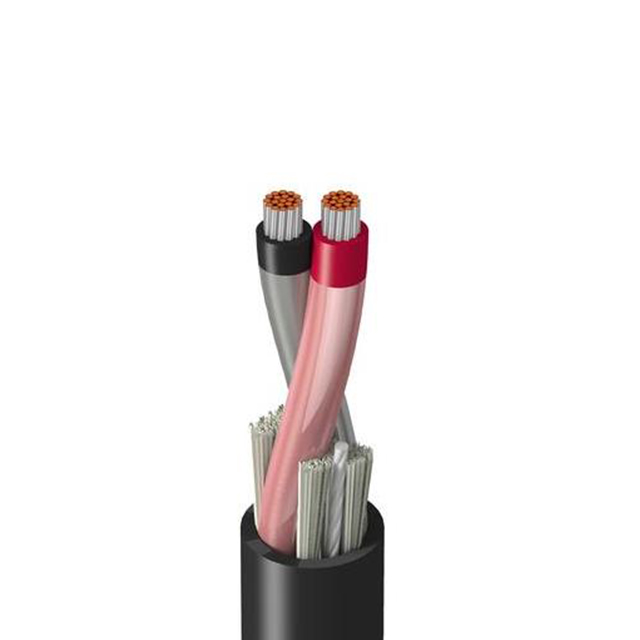

CABLE 2COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	9486 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Ripcord, UV Resistant, Direct Burial
Jacket (Insulation) Diameter [diameter]	6.99 mm
Jacket (Insulation) Diameter [diameter]	0.275 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Ratings	TC, UL Style NPLF
Usage	Instrumentation
Wire Gauge	18 AWG

Part	Conductor Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Cable Type	Wire Gauge	Length	Length
Belden Inc. 9486 0101000	Copper Tinned	Black	0.048 in	1.219 mm	Instrumentation	TC UL Style NPLF	6.99 mm	0.275 in	Direct Burial Ripcord UV Resistant	19	30 AWG	2	Poly-Vinyl Chloride (PVC)	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Multi-Conductor	18 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.83

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Black 18 AWG 1000.0' (304.8m)
