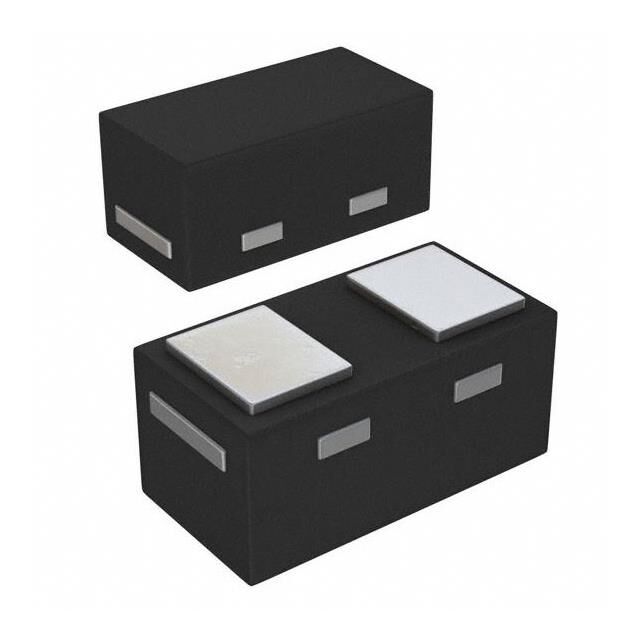

D5V0Z1B2LP3-7
ActiveDiodes Inc
ULTRA-LOW CAPACITANCE BI-DIRECTIONAL TVS DIODE
Deep-Dive with AI
Search across all available documentation for this part.
D5V0Z1B2LP3-7
ActiveDiodes Inc
ULTRA-LOW CAPACITANCE BI-DIRECTIONAL TVS DIODE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D5V0Z1B2LP3-7 |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels [custom] | 1 |
| Capacitance @ Frequency | 0.25 pF |
| Current - Peak Pulse (10/1000µs) | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Power - Peak Pulse | 250 mW |
| Power Line Protection | False |
| Supplier Device Package | X2-DFN0603-2 |
| Type | Zener |
| Voltage - Breakdown (Min) [Min] | 5.7 V |
| Voltage - Reverse Standoff (Typ) | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.04 | |
| 20000 | $ 0.03 | |||
| 30000 | $ 0.03 | |||
| 50000 | $ 0.03 | |||
| 70000 | $ 0.03 | |||
| 100000 | $ 0.03 | |||
| 250000 | $ 0.03 | |||
Description
General part information
D5V0Z1B2LP3 Series
D5V0Z1B2LP3 is a new generation TVS, which is designed to protect sensitive electronics from the damage due to ESD and includes a bidirectional ESD related clamping cell to protect high-speed data interface in an electronic system.
