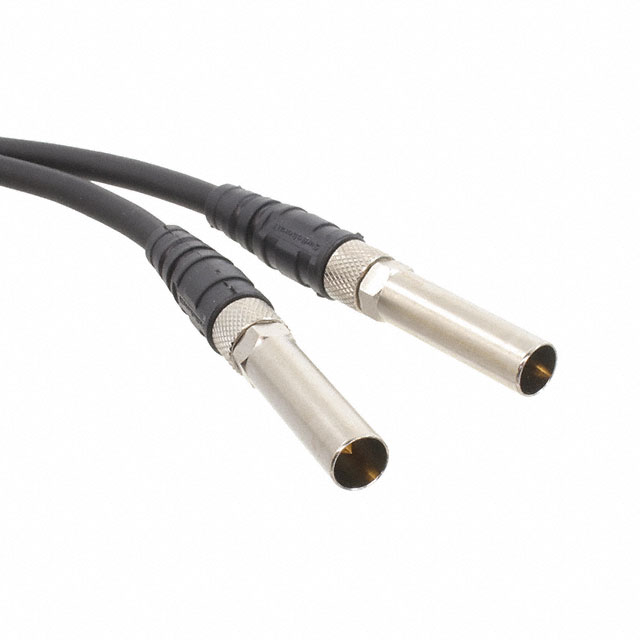

VP3BKX
ActiveSwitchcraft Inc.
AUDIO CABLES / VIDEO CABLES / RCA CABLES 3' WECO PATCHCORD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VP3BKX | VP Series |
|---|---|---|
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Type | WECo Male | WECo Male |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Connector Type | WECo Male | WECo Male |
| Cable Type | Round | Round |
| Color | Black | Black, Yellow, Red, Blue, Green |
| Length | - | 1.83 - 304.8 m |
| Length | - | 1 - 84 ft |
| Length [x] | 3 ft | 2 - 10 ft |
| Length [x] | 914.4 mm | 1.22 - 914.4 m |
| Shielding | Unshielded | Unshielded |
| Usage | Patch | Patch |
VP Series
Switch Hardware
| Part | 2nd Connector Type | 2nd Connector Mounting Type | 1st Connector Type | Cable Type | Length [x] | Length [x] | Shielding | 1st Connector Mounting Type | Color | Usage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. VP10BKX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | 3.05 m | 10 ft | Unshielded | Free Hanging (In-Line) | Black | Patch | ||
Switchcraft Inc. VP8YX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | Unshielded | Free Hanging (In-Line) | Yellow | Patch | 2.44 m | 8 ft | ||
Switchcraft Inc. VP10RX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | 3.05 m | 10 ft | Unshielded | Free Hanging (In-Line) | Red | Patch | ||
Switchcraft Inc. VP3BLX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | 914.4 mm | 3 ft | Unshielded | Free Hanging (In-Line) | Blue | Patch | ||
Switchcraft Inc. VP1YX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | Unshielded | Free Hanging (In-Line) | Yellow | Patch | 304.8 mm | 1 ft | ||
Switchcraft Inc. VP9BLX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | Unshielded | Free Hanging (In-Line) | Blue | Patch | 2.75 m | 9 ' | ||
Switchcraft Inc. VP2BKX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | 609.6 mm | 2 ' | Unshielded | Free Hanging (In-Line) | Black | Patch | ||
Switchcraft Inc. VP2YX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | 609.6 mm | 2 ' | Unshielded | Free Hanging (In-Line) | Yellow | Patch | ||
Switchcraft Inc. VP1GNX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | Unshielded | Free Hanging (In-Line) | Green | Patch | 304.8 mm | 1 ft | ||
Switchcraft Inc. VP9YX | WECo Male | Free Hanging (In-Line) | WECo Male | Round | Unshielded | Free Hanging (In-Line) | Yellow | Patch | 2.75 m | 9 ' |
