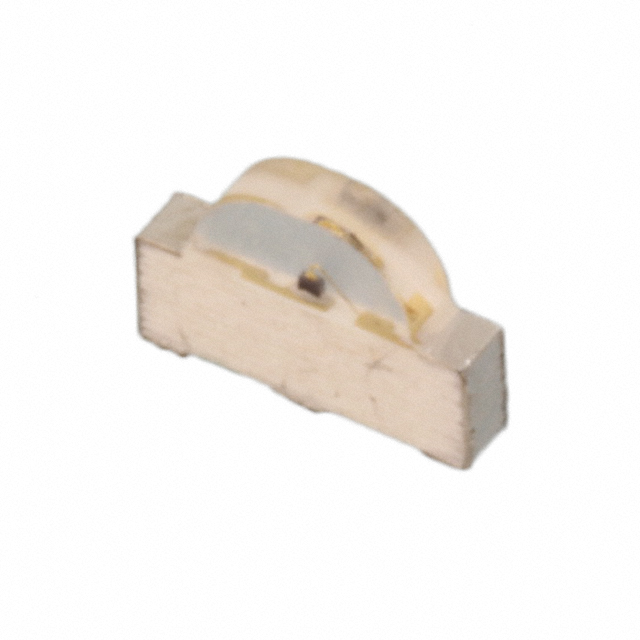

VSMB11940X01

Obsolete

Vishay Semiconductor Opto Division

EMITTER IR 940NM 65MA SMD

Search across all available documentation for this part.

Obsolete

Vishay Semiconductor Opto Division

EMITTER IR 940NM 65MA SMD

Technical Specifications

Parameters and characteristics for this part

Specification	VSMB11940X01

Current - DC Forward (If) (Max)	65 mA
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Side View
Package / Case	2-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	1 mW/sr
Type	Infrared (IR)
Viewing Angle	150 °
Voltage - Forward (Vf) (Typ)	1.24 V
Wavelength	940 nm

EMITTER IR 940NM 65MA SMD

Part	Current - DC Forward (If) (Max)	Orientation	Type	Mounting Type	Viewing Angle	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Voltage - Forward (Vf) (Typ)	Package / Case
Vishay Semiconductor Opto Division VSMB11940X01	65 mA	Side View	Infrared (IR)	Surface Mount, Right Angle	150 °	85 °C	-40 °C	940 nm	1 mW/sr	1.24 V	2-SMD, No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Infrared (IR) Emitter 940nm 1.24V 65mA 1mW/sr @ 20mA 150° 2-SMD, No Lead

Technical documentation and resources

No documents available
