17882-4PG-300

Active

Conxall/Switchcraft

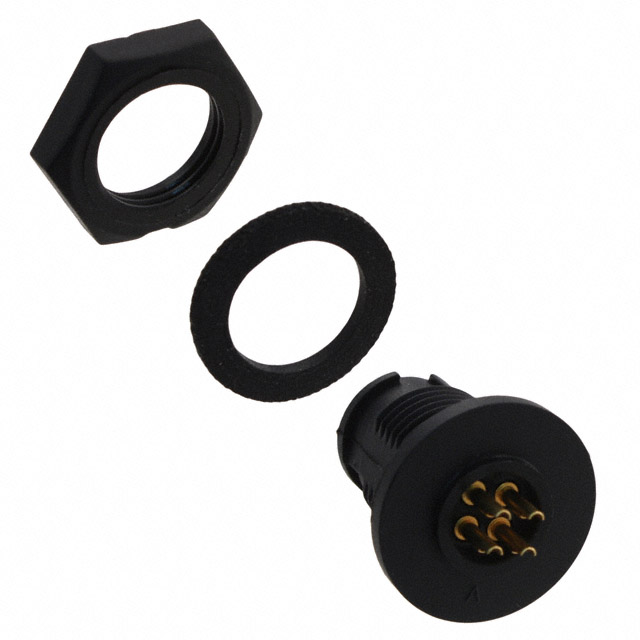

CONN RCPT MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	17882-4PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	6 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Color	Ingress Protection	Shielding	Contact Finish - Mating	Number of Positions	Contact Material	Material Flammability Rating	Voltage Rating	Primary Material	Fastening Type	Connector Type	Current Rating (Amps)	Orientation	Mounting Feature
Conxall/Switchcraft 17882-4PG-300	Data, Industrial, Instrumentation, Medical	85 °C	-40 °C	Black	IP67 - Dust Tight, Waterproof	Unshielded	Gold	4	Copper Alloy	UL94 HB	600 VAC	Plastic	Bayonet Lock	Male Pins, Receptacle	6 A	Keyed	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
