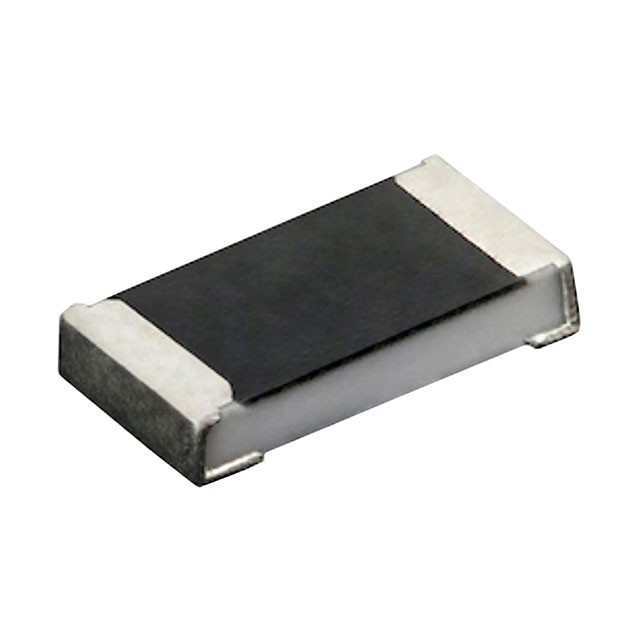

RCC12062K00FKEA
ActiveVishay Dale
RCC1206 100 2K0 1% ET1 E3
RCC12062K00FKEA
ActiveVishay Dale
RCC1206 100 2K0 1% ET1 E3
Description
General part information
RCC12062K00FKEA
2 kOhms ±1% 0.5W, 1/2W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200 Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RCC12062K00FKEA |
|---|---|
| Composition | Thick Film |
| Features | Automotive AEC-Q200 |
| Height - Seated (Max) | 0.024 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Package Name | 1206 |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Ratings | AEC-Q200 |
| Resistance | 2 kOhm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
