HEEE-020-F
ActiveTE Connectivity AMP Connectors

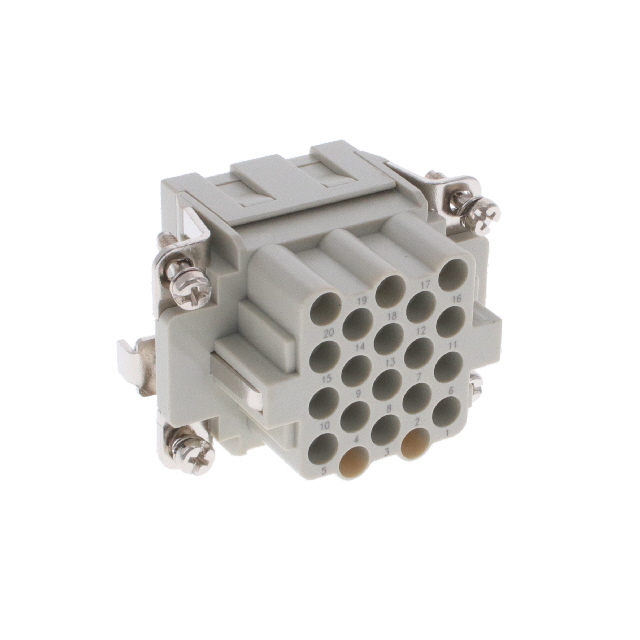

INSERT FML 20POS+1GND HEEE-020-F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HEEE-020-F
ActiveTE Connectivity AMP Connectors
INSERT FML 20POS+1GND HEEE-020-F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HEEE-020-F | HEEE-020 Series |
|---|---|---|
| Connector Type | Insert without Contacts | Insert without Contacts |
| Contact Type | CEF, DEF | CEF, DEF, CEM, DEM |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Female, Male |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 | EN45545 |
| Number of Positions | 20+Ground | 20+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H6B | H6B |
| Termination Style | Crimp | Crimp |
| Voltage Rating | 400 V | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.55 | |
| 10 | $ 8.64 | |||
| 30 | $ 8.41 | |||
| 50 | $ 8.09 | |||
| 100 | $ 8.05 | |||
| 250 | $ 9.04 | |||
| 500 | $ 8.61 | |||
| 1000 | $ 8.20 | |||
HEEE-020 Series
INSERT FML 20POS+1GND HEEE-020-F
| Part | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Gender | Housing Material | Size | Voltage Rating | Connector Type | Material Flammability Rating | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HEEE-020-F | 16 A | 125 °C | -40 °C | Crimp | Female | Polycarbonate (PC) | H6B | 400 V | Insert without Contacts | EN45545 | CEF, DEF | 20+Ground |
TE Connectivity AMP Connectors HEEE-020-M | 16 A | 125 °C | -40 °C | Crimp | Male | Polycarbonate (PC) | H6B | 400 V | Insert without Contacts | EN45545 | CEM, DEM | 20+Ground |
Description
General part information
HEEE-020 Series
Female Insert without Contacts 20+Ground Position Crimp
