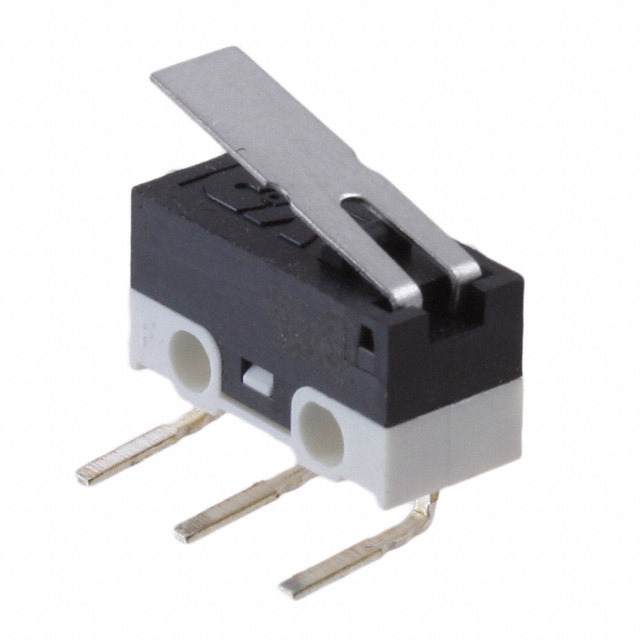

ZMCJF7L0R

Active

LITTELFUSE

SWITCH SNAP ACTION SPDT 3A 125V

Find alt

Alpha

ZMCJF7L0R

Active

LITTELFUSE

SWITCH SNAP ACTION SPDT 3A 125V

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

Zm0 Series Series

Designers of PCB detection switches, communication devices and testing equipment turn to the ZM series from C&K because of their reputation for being reliable and long-lasting. The ZM series is a mini size snap-acting switch that features a reliable snap-acting mechanism, compact size and the long electrical and mechanical life that today’s applications require.

Technical Specifications

Parameters and characteristics for this part

Specification	ZMCJF7L0R

Actuator Type	Lever, Leaf
Circuit	SPDT
Current Rating	3 A
Electrical Life (Cycles)	15000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	50 gf
Operating Position (Length)	0.33 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V

Zm0 Series Series

Mini Size Snap-acting Switch

Part	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type	Electrical Life (Cycles)	Termination Style	Circuit	Operating Position (Length)	Operating Force	Mounting Type	Voltage Rating - AC	Current Rating	Switch Function	Voltage Rating - DC
LITTELFUSE ZMCHF7T23L	85 °C	-30 °C	Lever Simulated Roller	15000 Cycles	PC Pin	SPDT	0.413 in	25 gf	Right Angle Through Hole	125 V	3 A	On-Mom
LITTELFUSE ZMCJF7T13R	85 °C	-30 °C	Lever Simulated Roller	15000 Cycles	PC Pin	SPDT	0.413 in	40 gf	Right Angle Through Hole	125 V	3 A	On-Mom
LITTELFUSE ZMCHF7L3T	85 °C	-30 °C	Leaf Lever	15000 Cycles	PC Pin	SPDT	0.33 in	30 gf	Through Hole	125 V	3 A	On-Mom
LITTELFUSE ZMCJF7P0T	85 °C	-30 °C	Round (Pin Plunger)	15000 Cycles	PC Pin	SPDT	0.276 in	150 gf	Through Hole	125 V	3 A	On-Mom
LITTELFUSE ZMCHF7L3K	85 °C	-30 °C	Leaf Lever	15000 Cycles	PC Pin	SPDT	0.33 in	30 gf	Through Hole	125 V	3 A	On-Mom
LITTELFUSE ZMCHM9P0K	85 °C	-30 °C	Round (Pin Plunger)	15000 Cycles	PC Pin	SPDT	0.276 in	90 gf	Through Hole		200 mA	On-Mom	60 V
LITTELFUSE ZMCHM9L3K	85 °C	-30 °C	Leaf Lever	15000 Cycles	PC Pin	SPDT	0.33 in	30 gf	Through Hole		200 mA	On-Mom	60 V
LITTELFUSE ZMCJM9P0T	85 °C	-30 °C	Round (Pin Plunger)	15000 Cycles	PC Pin	SPDT	0.276 in	150 gf	Through Hole		200 mA	On-Mom	60 V
LITTELFUSE ZMCHM9T23R	85 °C	-30 °C	Lever Simulated Roller	15000 Cycles	PC Pin	SPDT	0.413 in	25 gf	Right Angle Through Hole		200 mA	On-Mom	60 V
LITTELFUSE ZMCHF7T23T	85 °C	-30 °C	Lever Simulated Roller	15000 Cycles	PC Pin	SPDT	0.413 in	25 gf	Through Hole	125 V	3 A	On-Mom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ZMCJF7L0R | Datasheet
