MV14-6FBX-BOTTLE

Active

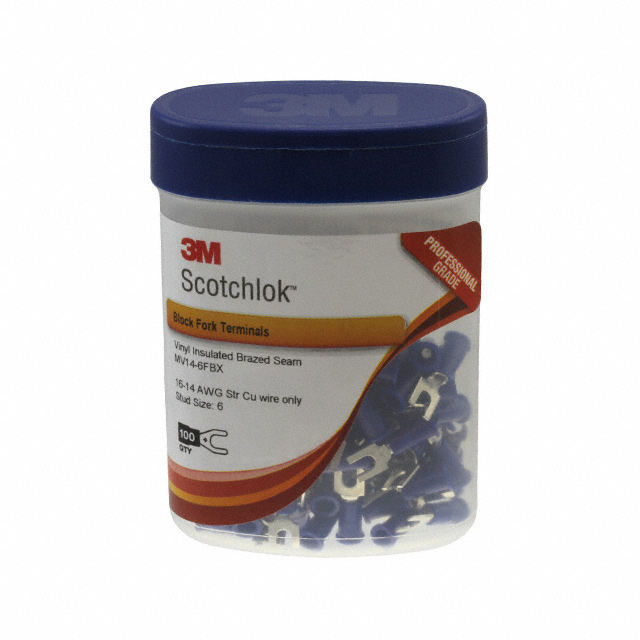

CONN SPADE TERM 14-16AWG 6 100PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MV14-6FBX-BOTTLE

Active

CONN SPADE TERM 14-16AWG 6 100PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MV14-6FBX-BOTTLE	MV14 Series

Color	Blue	Blue
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated, Fully Insulated
Length - Overall	-	0.9 in
Length - Overall	-	22.86 - 23.62 mm
Length - Overall [x]	21.59 mm	21.59 mm
Length - Overall [x]	0.85 "	0.85 - 0.93 "
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Ring Center to Termination [x]	0.25 in	0.25 in
Length - Ring Center to Termination [x]	6.35 mm	6.35 mm
Length - Termination [x]	0.45 in	0.45 in
Length - Termination [x]	11.43 mm	11.43 mm
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	6 Stud	0.3125 - 10 Stud
Stud/Tab Size	-	8 Stud
Terminal Type	Standard	Standard, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.34 in
Width - Outer Edges	-	0.25 - 0.47 "
Width - Outer Edges	-	6.35 - 11.94 mm

MV14 Series

CONN SPADE TERM 14-16AWG #8 BLU

Part	Length - Ring Center to Termination	Length - Ring Center to Termination	Contact Finish	Features	Width - Outer Edges	Width - Outer Edges	Length - Termination [x]	Length - Termination [x]	Length - Overall	Length - Overall	Insulation	Termination	Mounting Type	Color	Contact Material	Terminal Type	Stud/Tab Size	Material - Insulation	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Number of Wire Entries
3M MV14-8FK	0.29 in	7.37 mm	Tin	Brazed Seam	8.64 mm	0.34 in	0.45 in	11.43 mm	0.9 in	22.86 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard	8 Stud	Vinyl
3M MV14-6FBK			Tin	Brazed Seam			0.45 in	11.43 mm			Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard		Vinyl	6 Stud	21.59 mm	0.85 "	0.25 in	6.35 mm
3M MV14-6FBX-BOTTLE			Tin	Brazed Seam			0.45 in	11.43 mm			Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard		Vinyl	6 Stud	21.59 mm	0.85 "	0.25 in	6.35 mm
3M MV14-6FB/SX-BOTTLE			Tin	Brazed Seam			0.45 in	11.43 mm			Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard		Vinyl	6 Stud	21.59 mm	0.85 "	0.25 in	6.35 mm	0.25 "	6.35 mm
3M MV14-516R/SX-BOTTLE			Tin	Brazed Seam							Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Circular		Vinyl	0.3125 Stud					0.47 in	11.94 mm	0.03 in	0.76 mm
3M MV14-10RK			Tin	Brazed Seam					0.9 in	22.86 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Circular		Vinyl	10 Stud					0.33 in	8.38 mm	0.03 in	0.76 mm
3M MV14-8R/LK			Tin	Brazed Seam	7.87 mm					23.62 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Circular	8 Stud	Vinyl			0.93 in			0.31 in		0.03 in	0.76 mm
3M MV14-10FX-BOTTLE	0.29 in	7.37 mm	Tin	Brazed Seam	8.64 mm	0.34 in	0.45 in	11.43 mm	0.9 in	22.86 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Standard		Vinyl	10 Stud
3M MV14BCK											Fully Insulated	Crimp		Blue		Butt Splice, Individual Openings, Inline												2
3M MV14-10R/LK			Tin	Brazed Seam	7.87 mm					23.62 mm	Insulated	Crimp	Free Hanging (In-Line)	Blue	Copper, ETP	Circular		Vinyl	10 Stud		0.93 in			0.31 in		0.03 in	0.76 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.56

Description

General part information

MV14 Series

Blue 6 Stud Spade Terminal Connector Crimp 14-16 AWG
