2811297
ActivePhoenix Contact

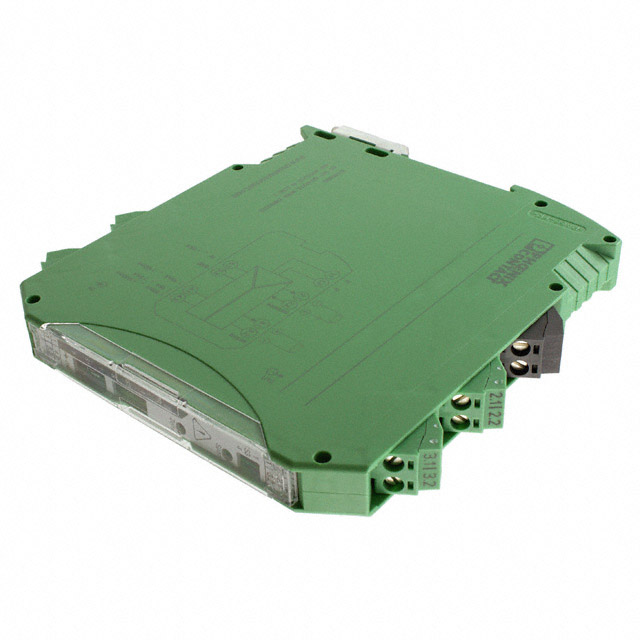

ISOLATED AMP 2 CHAN DIN RAIL
2811297
ActivePhoenix Contact
ISOLATED AMP 2 CHAN DIN RAIL
Description
General part information
2811297
ISOLATED AMP 2 CHAN DIN RAIL
Technical Specifications
Parameters and characteristics for this part
| Specification | 2811297 |
|---|---|
| Input Current Range (Maximum) | 100 mA |
| Input Current Range (Minimum) | -100 mA |
| Input Type | Voltage, Current |
| Input Voltage Range (Maximum) | 100 V |
| Input Voltage Range (Minimum) | -100 V |
| Isolation | 300 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output Current Range (Max) | 20 mA |
| Output Current Range (Min) | -20 mA |
| Output Type | Current, Voltage |
| Output Voltage Range (Max) | 10 VDC |
| Output Voltage Range (Min) | -10 V |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply (Maximum) | 230 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
