EV-BT40

Active

Fanstel Corp.

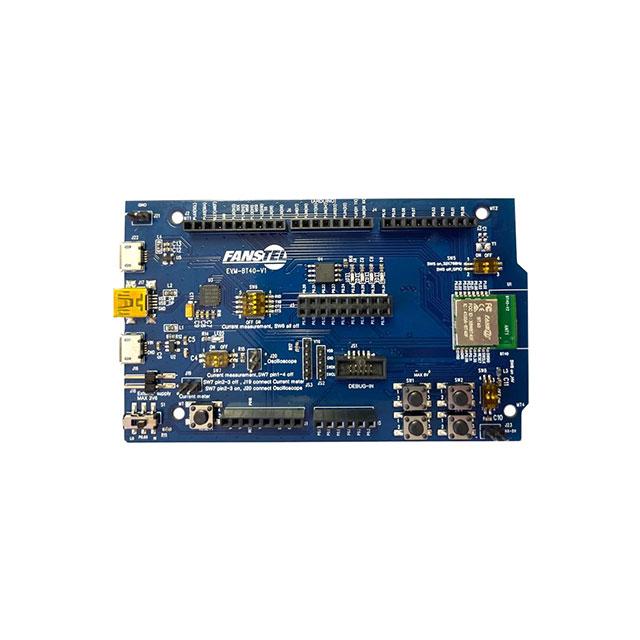

EVAL BOARD FOR BT40

Search across all available documentation for this part.

Active

Fanstel Corp.

EVAL BOARD FOR BT40

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EV-BT40	BT40 Series

Antenna Type	-	PCB Trace, Antenna Not Included, U.FL
Current - Receiving	-	2.6 mA
Current - Transmitting	-	3.2 mA
Data Rate	-	2 Mbps
For Use With/Related Products	nRF5340, BT40	nRF5340, BT40
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	512 kB
Memory Size	-	1 MB
Mounting Type	-	Surface Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Power - Output	-	3 dBm
Protocol	-	Bluetooth v5.1, Zigbee®
RF Family/Standard	-	Bluetooth, 802.15.4
Sensitivity	-	-97.5 dBm
Serial Interfaces	-	SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC
Supplied Contents	Board(s)	Board(s)
Type	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)
Utilized IC / Part	-	nRF5340
Voltage - Supply	-	5.5 V
Voltage - Supply	-	1.7 V

EVAL BOARD FOR BT40

Part	Type	For Use With/Related Products	Frequency	Supplied Contents	Current - Transmitting	Operating Temperature [Min]	Operating Temperature [Max]	Current - Receiving	Memory Size [custom]	Memory Size [custom]	Serial Interfaces	Protocol	Utilized IC / Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Antenna Type	Power - Output	Mounting Type	Data Rate	RF Family/Standard
Fanstel Corp. EV-BT40	802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver	BT40, nRF5340	2.4 GHz	Board(s)
Fanstel Corp. BT40F			2.4 GHz		3.2 mA	-40 °C	105 ░C	2.6 mA	512 kB	1 MB	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	Bluetooth v5.1, Zigbee®	nRF5340	5.5 V	1.7 V	-97.5 dBm	PCB Trace	3 dBm	Surface Mount	2 Mbps	802.15.4, Bluetooth
Fanstel Corp. BT40E			2.4 GHz		3.2 mA	-40 °C	105 ░C	2.6 mA	512 kB	1 MB	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	Bluetooth v5.1, Zigbee®	nRF5340	5.5 V	1.7 V	-97.5 dBm	Antenna Not Included, U.FL	3 dBm	Surface Mount	2 Mbps	802.15.4, Bluetooth

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 50.50

General part information

- BT40, nRF5340 Transceiver; 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board
