T2192503101-000
ActiveTE Connectivity AMP Connectors
T2192503101-000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T2192503101-000
ActiveTE Connectivity AMP Connectors
T2192503101-000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2192503101-000 | T219 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | Module without Contacts | Module without Contacts, Module |
| Contact Finish | - | Silver |
| Contact Finish Thickness | - | 196.9 µin |
| Contact Finish Thickness | - | 5 µm |
| Contact Termination | - | Crimp |
| Contact Type | HCM | HCM |
| Current Rating (Amps) | - | 350 - 650 A |
| Gender | Male | Male, Female |
| Housing Material | Polycarbonate (PC) | Polyamide (PA), Nylon, Polyamide (PA), Polycarbonate (PC), Nylon |
| Material Flammability Rating | - | UL94 V-0 |
| Number of Positions | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pin or Socket | - | Pin, Socket |
| Termination Style | Crimp | Crimp, Screw |
| Voltage Rating | 2000 VDC | 2000 - 4000 V |
| Wire Gauge | - | 2 - 185 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 17.20 | |
T219 Series
T2196501185-001
| Part | Pin or Socket | Wire Gauge | Contact Termination | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Number of Positions | Color | Current Rating (Amps) | Contact Type | Material Flammability Rating | Connector Type | Gender | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2196501185-001 | Pin | 185 mm² | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2196503101-000 | Polyamide (PA), Nylon | 1 | Gray | 650 A | HCM | UL94 V-0 | Module without Contacts | Male | 4000 V | 125 °C | -40 °C | Crimp | ||||||
TE Connectivity AMP Connectors T2193502201-000 | Nylon, Polyamide (PA), Polycarbonate (PC) | 1 | Gray | 350 A | UL94 V-0 | Module | Female | 2000 VDC | 125 °C | -40 °C | Screw | |||||||
TE Connectivity AMP Connectors T2192502035-000 | Socket | 2 AWG | Crimp | Silver | ||||||||||||||
TE Connectivity AMP Connectors T2192502050-000 | Socket | 44 AWG | Crimp | Silver | ||||||||||||||
TE Connectivity AMP Connectors T2193501035-000 | Pin | 35 mm˛ | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2192503101-000 | Polycarbonate (PC) | 1 | HCM | Module without Contacts | Male | 2000 VDC | 125 °C | -40 °C | Crimp | |||||||||
TE Connectivity AMP Connectors T2196502120-001 | Socket | 120 mm² | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2193502095-000 | Socket | 95 mm² | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2192501050-000 | Pin | 44 AWG | Crimp | Silver | ||||||||||||||
TE Connectivity AMP Connectors T2196501120-001 | Pin | 120 mm² | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2196502185-001 | Socket | 185 mm² | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2193501095-000 | Pin | 95 mm² | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2196501070-001 | Pin | 70 mm˛ | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2193502120-000 | Silver | |||||||||||||||||
TE Connectivity AMP Connectors T2193502050-000 | Socket | 50 mm² | Crimp | Silver | 196.9 µin | 5 µm | ||||||||||||
TE Connectivity AMP Connectors T2192501070-000 | Pin | Crimp | Silver |
Description
General part information
T219 Series

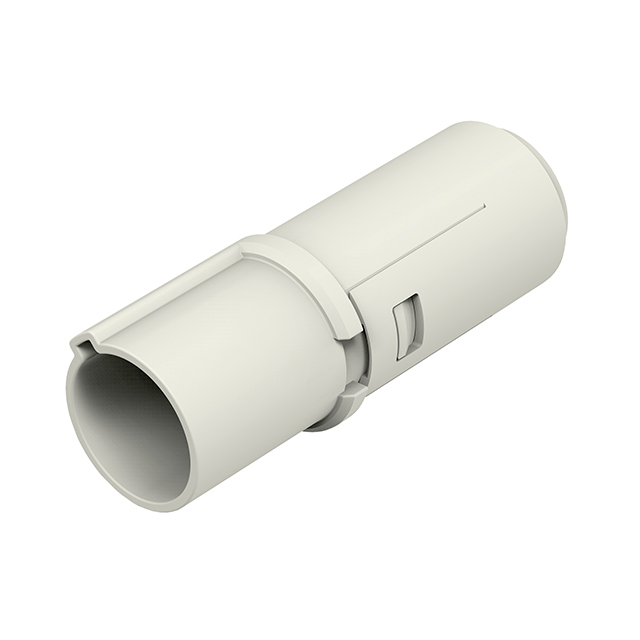

Male Module without Contacts 1 Position Crimp
