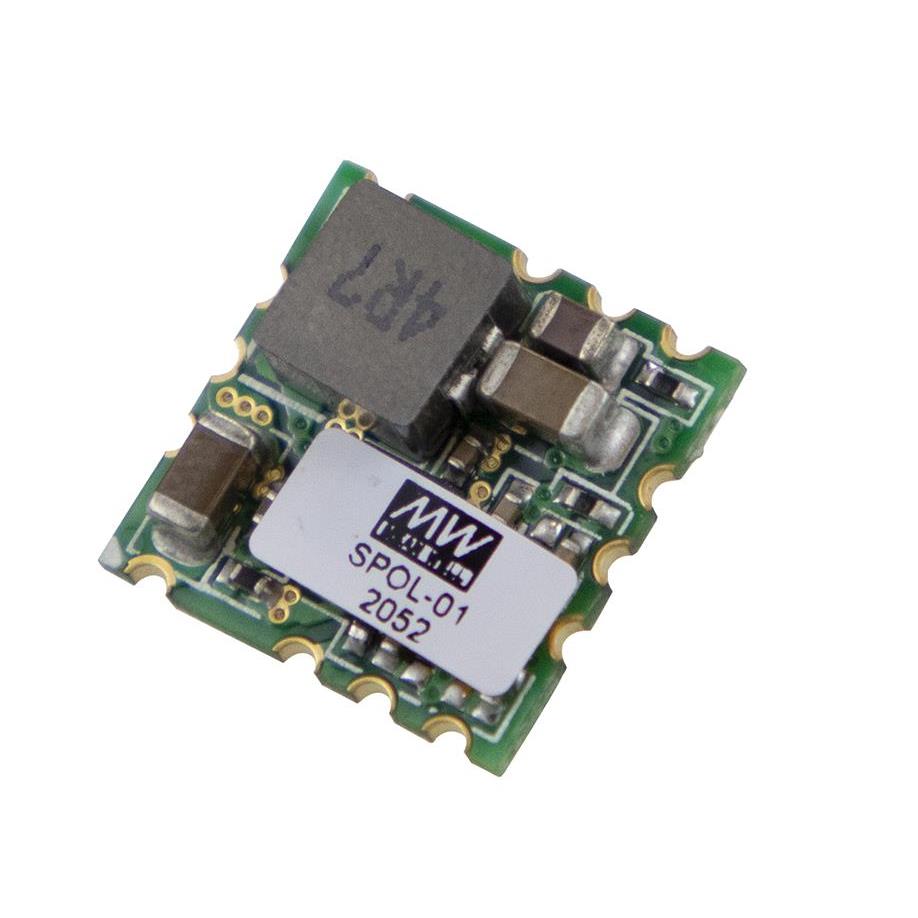

SPOL-01
ActiveMEAN WELL USA Inc.
SMD POL 1A ; 3~14VIN, 0.9~5.5VO
SPOL-01
ActiveMEAN WELL USA Inc.
SMD POL 1A ; 3~14VIN, 0.9~5.5VO
Description
General part information
SPOL-01
Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 5.5V 1A 3V - 14V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SPOL-01 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UKCA |
| Current - Output (Max) | 1 A |
| Efficiency | 90 % |
| Features | Adjustable Output, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 82 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 12-SMD Module |
| Power (Watts) | 5.5 W |
| Size / Dimension Height | 0.16 in |
| Size / Dimension Length | 0.49 in |
| Size / Dimension Width | 0.49 in |
| Standard Number | 62368-1 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 14 V |
| Voltage - Input (Min) | 3 V |
| Voltage - Output 1 (Max) | 5.5 V |
| Voltage - Output 1 (Min) | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
