ERF8-070-05.0-S-DV-L-K-TR

Active

Samtec Inc.

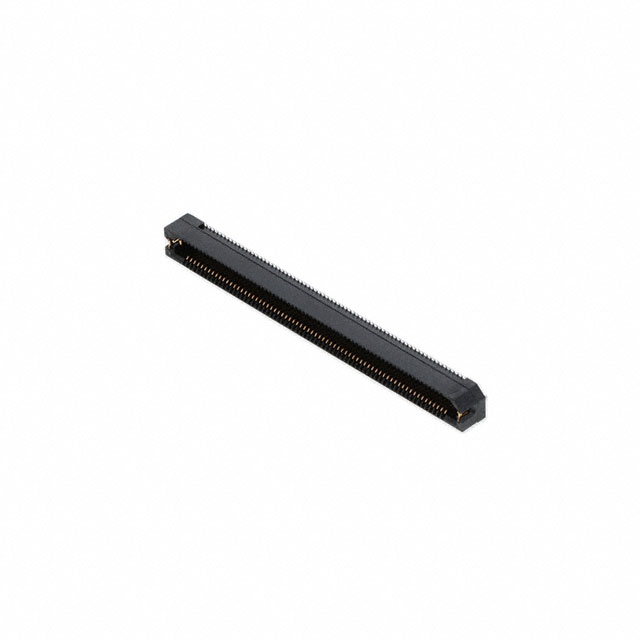

CONN MICRO HIGH SPEED SOCKET STRIP SKT 140 POS 0.8MM SOLDER ST TOP ENTRY SMD EDGE RATE® T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERF8 Series Other Related Documents 03 +1

ERF8-070-05.0-S-DV-L-K-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED SOCKET STRIP SKT 140 POS 0.8MM SOLDER ST TOP ENTRY SMD EDGE RATE® T/R

Deep-Dive with AI

DocumentsDatasheet ERF8 Series Other Related Documents 03 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERF8-070-05.0-S-DV-L-K-TR

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Pick and Place, Latches
Height Above Board	0.21 in
Height Above Board	5.33 mm
Mated Stacking Heights	14 mm, 10 mm, 13 mm, 20 mm, 7 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERF8-070 Series

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Connector Type	Height Above Board	Height Above Board
Samtec Inc. ERF8-070-07.0-S-DV-EGP-TR	Board Guide	0.76 Ám	30 Áin	140	2	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	Surface Mount	0.285 in	7.24 mm	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-070-03-S-D-RA-TR	Board Guide Mounting Flange	0.76 Ám	30 Áin	140	2	0.8 mm	0.031 in		Surface Mount Right Angle			Gold	Outer Shroud Contacts Socket	6.25 mm	0.246 in
Samtec Inc. ERF8-070-01-L-D-RA-EGP-TR	Board Guide Mounting Flange	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in		Surface Mount Right Angle			Gold	Outer Shroud Contacts Socket	6.25 mm	0.246 in
Samtec Inc. ERF8-070-05.0-L-DV-K-TR	Board Guide Pick and Place	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm	Surface Mount			Gold	Outer Shroud Contacts Socket	5.33 mm	0.21 in
Samtec Inc. ERF8-070-05.0-S-DV-L-K-TR	Board Guide Latches Pick and Place	0.76 Ám	30 Áin	140	2	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm	Surface Mount			Gold	Outer Shroud Contacts Socket	5.33 mm	0.21 in
Samtec Inc. ERF8-070-07.0-L-DV-EGP-K-TR	Board Guide Pick and Place	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	Surface Mount	0.285 in	7.24 mm	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-070-03-L-D-RA-TR	Board Guide Mounting Flange	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in		Surface Mount Right Angle			Gold	Outer Shroud Contacts Socket	6.25 mm	0.246 in
Samtec Inc. ERF8-070-01-L-D-EM2-TR		0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in		Board Edge Straddle Mount			Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-070-07.0-S-DV-K-TR	Board Guide Pick and Place	0.76 Ám	30 Áin	140	2	0.8 mm	0.031 in	9 mm 12 mm 15 mm 16 mm 22 mm	Surface Mount	0.285 in	7.24 mm	Gold	Outer Shroud Contacts Socket
Samtec Inc. ERF8-070-05.0-L-DV-L-K-TR	Board Guide Latches Pick and Place	0.25 Ám	10 Áin	140	2	0.8 mm	0.031 in	7 mm 10 mm 13 mm 14 mm 20 mm	Surface Mount			Gold	Outer Shroud Contacts Socket	5.33 mm	0.21 in
