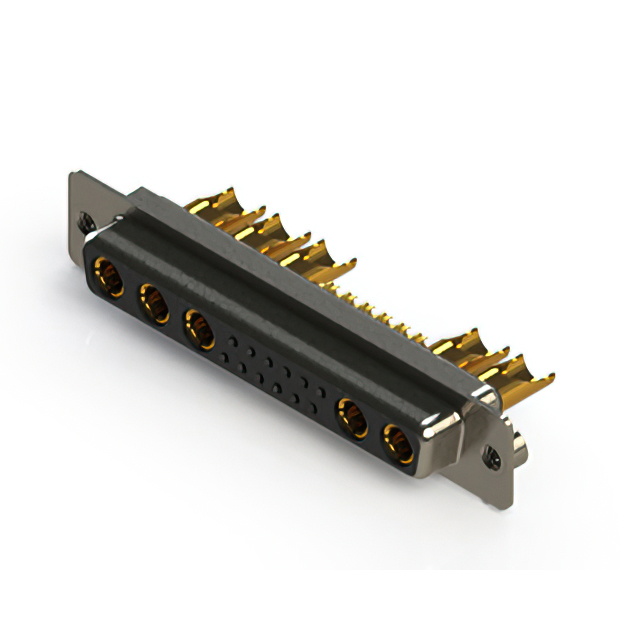

628-17W5222-4N2

Active

EDAC Inc.

CONN D-SUB RCPT 17POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-17W5222-4N2

Active

EDAC Inc.

CONN D-SUB RCPT 17POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-17W5222-4N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	5
Number of Positions [custom]	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C), 17W5
Voltage Rating	125 VDC

628-17W Series

...

Part	Shell Size, Connector Layout	Number of Rows	Contact Finish	Flange Feature	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Color	Termination	Contact Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Material Flammability Rating	Connector Style	Number of Positions [custom]	Number of Positions [custom]	Voltage Rating	Current Rating (Amps)	Number of Positions [custom]	Contact Finish Thickness	Number of Positions [custom]	Current Rating (Amps)	Shell Material, Finish	Number of Positions [custom]	Number of Positions [custom]	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-17W5624-4TD	17W5 4 (DC C)	2	Gold	Board Side (M3)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Board Lock Shielded	Black	Solder	Signal and Power	Copper Alloy	0.76 Ám	30 Áin	Through Hole	UL94 V-0	Combo D-Sub	5	12	125 VDC	5 A 40 A
EDAC Inc. 628-17W2222-2TA	17W2 3 (DB B)	2	Gold	Board Side (M3)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black		Signal and Power	Copper Alloy			Free Hanging (In-Line)	UL94 V-0	Combo D-Sub	2		125 VDC	5 A 20 A	15	Flash
EDAC Inc. 628-17W5224-7T6	17W5 4 (DC C)	2	Gold	4-40	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Board Lock Shielded	Black	Solder	Coax Signal	Copper Alloy			Through Hole	UL94 V-0	Combo D-Sub			125 VDC		12	Flash	5
EDAC Inc. 628-17W5624-7T1	17W5 4 (DC C)	2	Gold	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Coax Signal	Copper Alloy	0.76 Ám	30 Áin	Through Hole	UL94 V-0	Combo D-Sub			125 VDC		12		5
EDAC Inc. 628-17W5224-1TA	17W5 4 (DC C)	2	Gold	Board Side (M3)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Signal and Power	Copper Alloy			Through Hole	UL94 V-0	Combo D-Sub	5	12	125 VDC			Flash		10A 5A
EDAC Inc. 628-17W2224-7N3	17W2 3 (DB B)	2	Gold	4-40 Board Side	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Coax Signal	Copper Alloy			Through Hole	UL94 V-0	Combo D-Sub			125 VDC		15	Flash			Nickel Plated Steel	2	17
EDAC Inc. 628-17W5224-5TA	17W5 4 (DC C)	2	Gold	Board Side (M3)	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Coax Signal	Copper Alloy			Through Hole	UL94 V-0	Combo D-Sub			125 VDC		12	Flash	5
EDAC Inc. 628-17W2624-3TC	17W2 3 (DB B)	2	Gold		Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black	Solder	Signal and Power	Copper Alloy	0.76 Ám	30 Áin	Through Hole	UL94 V-0	Combo D-Sub	2		125 VDC	5 A 30 A	15							M3	M3
EDAC Inc. 628-17W5222-4N2	17W5 4 (DC C)	2	Gold	4-40 Board Side	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black		Signal and Power	Copper Alloy			Free Hanging (In-Line)	UL94 V-0	Combo D-Sub	5	12	125 VDC	5 A 40 A		Flash			Nickel Plated Steel
EDAC Inc. 628-17W2222-3T2	17W2 3 (DB B)	2	Gold	4-40 Board Side	Polyester Thermoplastic	Receptacle Female Sockets	-55 °C	125 °C	Shielded	Black		Signal and Power	Copper Alloy			Free Hanging (In-Line)	UL94 V-0	Combo D-Sub	2		125 VDC	5 A 30 A	15	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 11.97

Description

General part information

628-17W Series

17 (12 + 5 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
