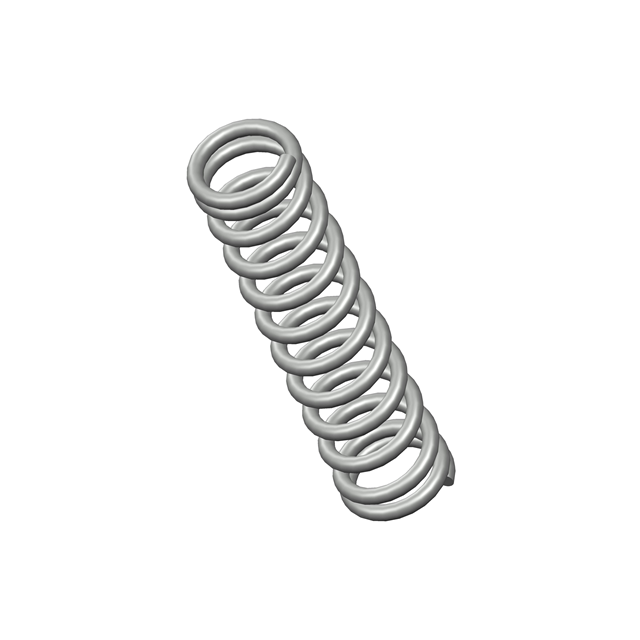

10994CS
ActiveCentury Spring Corp
COMP O= .140,L= .63,W= .020
10994CS
ActiveCentury Spring Corp
COMP O= .140,L= .63,W= .020
Description
General part information
10994CS
COMP O= .140,L= .63,W= .020
Technical Specifications
Parameters and characteristics for this part
| Specification | 10994CS |
|---|---|
| Diameter - Inside | 0.1 in |
| Diameter - Outside | 0.14 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.63 in |
| Material | Music Wire |
| Rate (lbs/in) | 13 lbs/in |
| Type | Compression |
| Wire Diameter | 0.02 in |
