DMN1250UFEL-7
UnknownDiodes Inc
DUAL MOSFET, THREE N CHANNEL, 12 V, 12 V, 2 A, 2 A, 0.28 OHM
DMN1250UFEL-7
UnknownDiodes Inc
DUAL MOSFET, THREE N CHANNEL, 12 V, 12 V, 2 A, 2 A, 0.28 OHM
Description
General part information
DMN1250UFEL-7
This new generation Mix-MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | DMN1250UFEL-7 |
|---|---|
| Channel Count | 8 |
| Configuration | N-Channel, Common Gate, Common Source |
| Current - Continuous Drain (Id) | 2 A |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Max) | 1.9 nC |
| Input Capacitance (Ciss) (Max) | 190 pF |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |

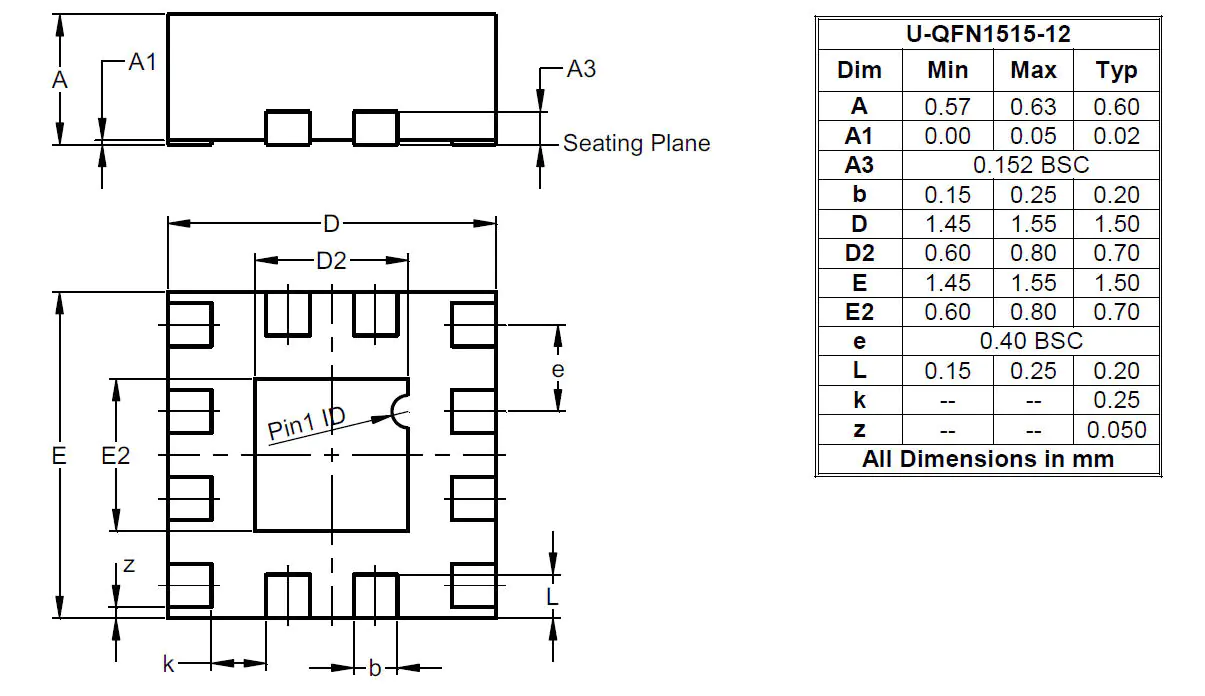

| Package / Case | 12-UFQFN Exposed Pad |
| Package Name | U-QFN1515-12 |
| Power - Max | 660 mW |
| Rds On (Max) | 450 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) | 1 V |
